H07G-K Cable
Voltage:450/750V
StructureConductorClass 5 flexible stranded Copper
InsulationEVA (Ethylene Vinyl Acetate) Rubber EI8 Type
ScreenNone
SheathNone
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Single core H07G cable with solid, stranded or flexible stranded copper conductor for internal installations in dry, clean environments requiring a rated voltage of 450/750V. EVA insulation supports a maximum operating temperature of +110°C.

STANDARDS

EN 50525-1, 50525-2-42, IEC/EN 60228, IEC 60245-1/2/7, DIN VDE 0282-1/7/300, DIN VDE 0295, VDE 0298-4, EN 50395, EN 50396, HD 22.1/9, HD 308, HD 383, HD 516

Flame Retardant to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating450/750V
Temperature RatingMaximum operating temperature: 110°C
Maximum conductor short-circuit temperature: 250°C
Minimum installation temperature: 5°C

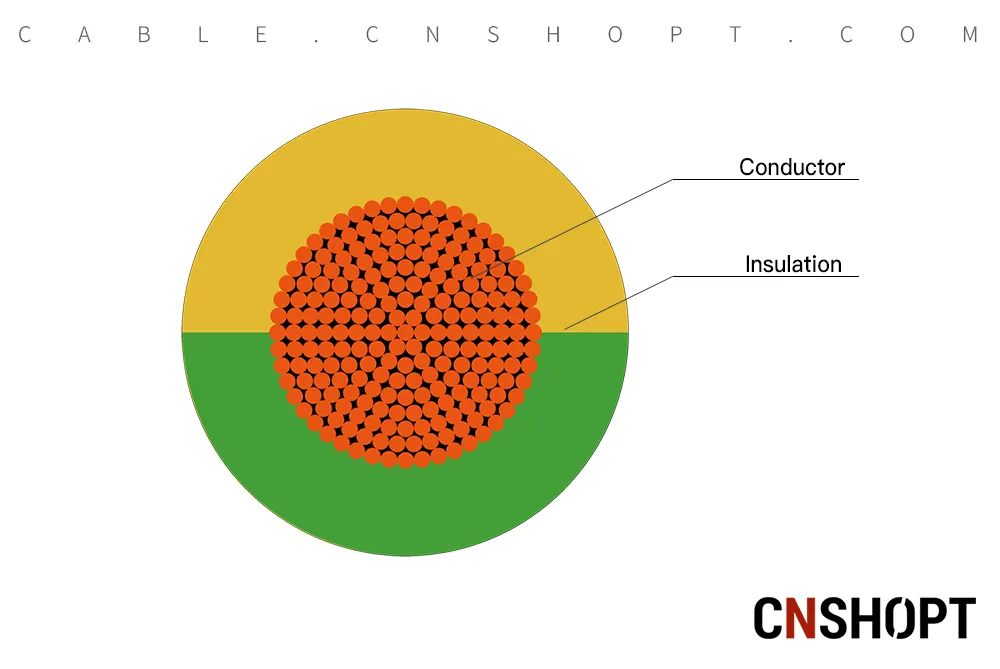

CONSTRUCTION

ConductorClass 5 flexible stranded Copper
InsulationEVA (Ethylene Vinyl Acetate) Rubber EI8 Type
NOMINAL CROSS  SECTIONAL AREA
mm2		MINIMUM
OVERALL DIAMETER
mm		MAXIMUM OVERALL DIAMETER
mm		NOMINAL CABLE WEIGHT
kg/km
1.533.725
2.53.64.539
44.35.459
64.8681
1067.6132
167.18.9197
258.811303
3510.112.6410
5011.914.9580
7013.617788
9515.519.31060
12017.121.41318
1501923.81645
1852126.32026
24023.929.92615
