H05Z-U Cable
Voltage:300/500V
StructureConductorClass 1 solid Copper
InsulationLSZH (Low Smoke Zero Halogen)
ScreenNone
SheathNone
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Single core rubber insulated H05Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V.

STANDARDS

EN 50525-1, 50525-3-41, IEC/EN 60228, IEC 60245-2, DIN VDE 0282-1/9/300, DIN VDE 0295, VDE 0298-4, EN 50395, EN 50396, HD 22.1/9, HD 308, HD 383, HD 516

Flame Retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2 and IEC/EN 61034-1/2

CHARACTERISTICS

Voltage Rating300/500V
Temperature RatingMaximum conductor operating temperature: 90°C
Maximum conductor short-circuit temperature: 250°C
Minimum installation temperature: 5°C

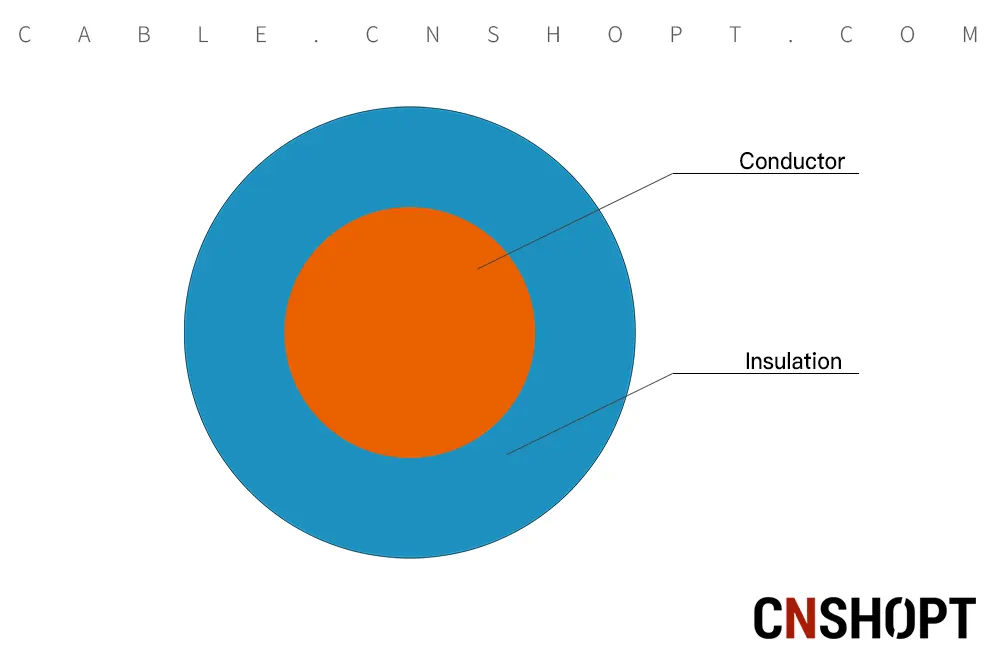

CONSTRUCTION

ConductorClass 1 solid Copper
InsulationLSZH (Low Smoke Zero Halogen)
NOMINAL CROSS SECTIONAL AREA
mm2		MINIMUM OVERALL
DIAMETER
mm		MAXIMUM OVERALL DIAMETER
mm		NOMINAL CABLE WEIGHT
kg/km
0.51.92.47.1
0.752.12.69.7
12.22.812.1
