| H05VV5-F Cable | ||
|---|---|---|
| Voltage: | 300/500V | |

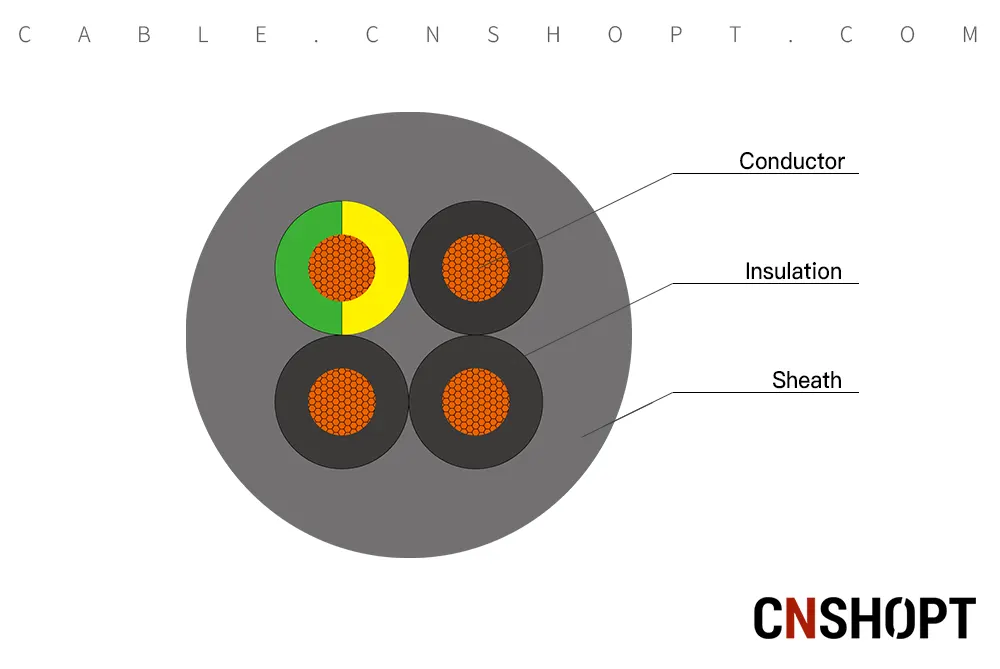

| Structure | Conductor | Class 5 Fine Stranded Bare Copper |
| Insulation | PVC TI 2 (Polyvinyl Chloride) | |
| Screen | None | |
| Sheath | PVC TM2 (Polyvinyl Chloride) | |
Flexible power, process control and instrumentation cable for industry and machinery environment. This cable is resistant against most usual chemicals, oil and grease.
VDE 0281-12, VDE 0482-332-1-2, EN 60811-2-1
Fire Retardant according to: IEC 60332-1
| Voltage Rating (Uo/U) | 300/500V |
| Voltage Test | 2kV |
| Temperature Rating | Fixed: -40ºC to +70ºC |
| Installation: -5ºC to +70ºC | |
| Conductor Maximum Temperature | +70ºC |
| Minimum Bending Radius | Fixed Installation: 4 x overall diameter |
| Moved Application: 12.5 x overall diameter |
| Conductor | Class 5 Fine Stranded Bare Copper |
| Insulation | PVC TI 2 (Polyvinyl Chloride) |
| Outer Sheath | PVC TM2 (Polyvinyl Chloride) |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 3 | 0.75 | 7.2 | 61 |
| 3 | 1 | 7.4 | 71 |
| 3 | 1.5 | 8 | 92 |
| 3 | 2.5 | 9.7 | 146 |
| 4 | 0.75 | 7.8 | 75 |
| 4 | 1 | 8 | 89 |
| 4 | 1.5 | 9.2 | 125 |
| 4 | 2.5 | 11 | 196 |
| 5 | 0.75 | 9 | 100 |
| 5 | 1 | 9.2 | 116 |
| 5 | 1.5 | 10 | 155 |
| 5 | 2.5 | 12.1 | 235 |
| 7 | 0.75 | 10.5 | 141 |
| 7 | 1 | 10.8 | 166 |
| 7 | 1.5 | 12.2 | 227 |
| 7 | 2.5 | 14.2 | 343 |
| 12 | 0.75 | 13 | 214 |
| 12 | 1 | 13.4 | 251 |
| 12 | 1.5 | 14.6 | 330 |
| 12 | 2.5 | 17.7 | 535 |
| 18 | 0.75 | 15.1 | 306 |
| 18 | 1 | 16.2 | 385 |
| 18 | 1.5 | 17.7 | 506 |
| 18 | 2.5 | 21.3 | 800 |
| 25 | 0.75 | 18.6 | 427 |
| 25 | 1 | 19.8 | 534 |
| 25 | 1.5 | 21.6 | 700 |
| 25 | 2.5 | 25.9 | 1100 |
| 34 | 0.75 | 21.3 | 590 |
| 34 | 1 | 22 | 700 |
| 34 | 1.5 | 24.1 | 920 |
