| N2XCY - Power Cable | ||
|---|---|---|
| Voltage: | 0.6/1kV | |

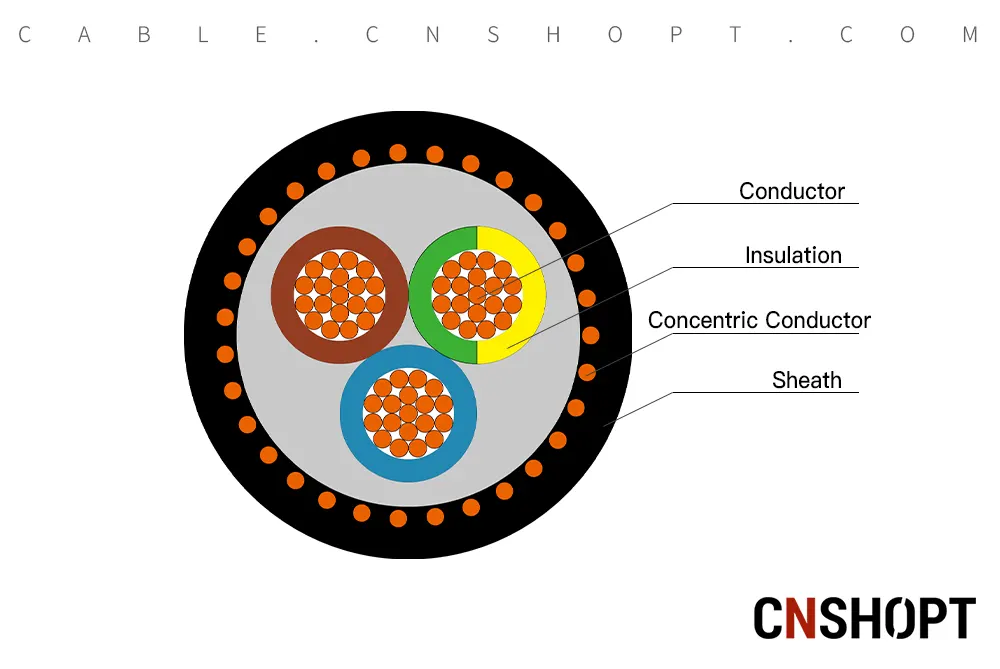

| Structure | Conductor | Class 2 Stranded copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Concentric Conductor | Copper | |
| Sheath | PVC (Polyvinyl Chloride) | |
The N2XCY cable is suitable for installation in ground, indoors, cable trunking and outdoors. Used for power distribution in industrial application, including urban networks and household feeders.
IEC 60502-1, VDE 0276-603, IS 1516.1
Flame retardant according to IEC 60332-1
| Voltage Rating Uo/U | 0.6/1kV |
| Test Voltage | 3.5kV |
| Temperature Rating | Maximum Operating: +90ºC |
| Maximum Short-Circuit: +250°C | |
| Minimum Bending Radius | 15 x overall diameter |
| Conductor | Class 2 Stranded copper |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Filler | PVC (Polyvinyl chloride) |
| Concentric Conductor | Copper |
| Tape | Protective Copper Tape |
| Outer Sheath | PVC (Polyvinyl chloride) |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 2 | 1.5/1.5 | 1.37 | 0.70 | 1.24 | 12 | 186 |
| 2 | 2.5/2.5 | 1.76 | 0.70 | 1.24 | 13 | 233 |
| 2 | 4/4 | 2.21 | 0.70 | 1.24 | 14 | 298 |
| 2 | 6/6 | 2.71 | 0.70 | 1.24 | 15 | 380 |
| 2 | 10/10 | 3.85 | 0.70 | 1.24 | 17 | 560 |
| 2 | 16/10 | 4.8 | 0.70 | 1.24 | 20 | 801 |
| 2 | 25/16 | 5.8 | 0.90 | 1.24 | 23 | 1063 |
| 2 | 35/16 | 6.85 | 0.90 | 1.24 | 25 | 1312 |
| 2 | 50/25 | 8.1 | 1.00 | 1.32 | 29 | 1761 |
| 2 | 70/35 | 9.7 | 1.10 | 1.40 | 33 | 2445 |
| 2 | 95/50 | 11.4 | 1.10 | 1.48 | 37 | 3230 |
| 2 | 120/70 | 13.1 | 1.20 | 1.64 | 42 | 4137 |
| 2 | 150/70 | 14.5 | 1.40 | 1.72 | 46 | 4897 |
| 2 | 185/95 | 16.0 | 1.60 | 1.88 | 51 | 6097 |
| 2 | 240/120 | 18.6 | 1.70 | 2.04 | 57 | 7923 |
| 2 | 300/150 | 21.0 | 1.80 | 2.20 | 63 | 9819 |
| 3 | 1.5/1.5 | 1.3 | 0.7 | 1.24 | 12 | 203 |
| 3 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 13 | 260 |
| 3 | 4/4 | 2.21 | 0.7 | 1.24 | 14 | 336 |
| 3 | 6/6 | 2.71 | 0.7 | 1.24 | 16 | 433 |
| 3 | 10/10 | 3.8 | 0.7 | 1.24 | 18 | 637 |
| 3 | 16/10 | 4.8 | 0.7 | 1.24 | 22 | 1044 |
| 3 | 25/16 | 5.9 | 0.9 | 1.24 | 27 | 1421 |
| 3 | 35/16 | 6.9 | 0.9 | 1.32 | 29 | 1763 |
| 3 | 50/25 | 8.2 | 1 | 1.4 | 33 | 2369 |
| 3 | 70/35 | 9.7 | 1.1 | 1.56 | 38 | 3250 |
| 3 | 95/50 | 11.4 | 1.1 | 1.64 | 42 | 4337 |
| 3 | 120/70 | 13.1 | 1.2 | 1.8 | 48 | 5526 |
| 3 | 150/70 | 14.2 | 1.4 | 1.88 | 51 | 6486 |
| 3 | 185/95 | 15.8 | 1.6 | 2.04 | 57 | 8108 |
| 3 | 240/120 | 18.6 | 1.7 | 2.2 | 64 | 10459 |
| 3 | 300/150 | 21 | 1.8 | 2.36 | 68 | 12541 |
| 4 | 1.5/1.5 | 1.3 | 0.7 | 1.24 | 13 | 245 |
| 4 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 14 | 317 |
| 4 | 4/4 | 2.21 | 0.7 | 1.24 | 16 | 415 |
| 4 | 6/6 | 2.71 | 0.7 | 1.24 | 17 | 537 |
| 4 | 10/10 | 3.9 | 0.7 | 1.24 | 20 | 806 |
| 4 | 16/10 | 4.8 | 0.7 | 1.24 | 22 | 1137 |
| 4 | 25/16 | 5.9 | 0.9 | 1.24 | 27 | 1593 |
| 4 | 35/16 | 6.9 | 0.9 | 1.32 | 30 | 2059 |
| 4 | 50/25 | 8.2 | 1 | 1.4 | 34 | 2753 |
| 4 | 70/35 | 9.7 | 1.1 | 1.56 | 39 | 3821 |
| 4 | 95/50 | 11.4 | 1.1 | 1.72 | 44 | 5111 |
| 4 | 120/70 | 13.1 | 1.2 | 1.88 | 50 | 6501 |
| 4 | 150/70 | 14.2 | 1.4 | 1.96 | 53 | 7748 |
| 4 | 185/95 | 15.8 | 1.6 | 2.12 | 59 | 9609 |
| 4 | 240/120 | 18.6 | 1.7 | 2.28 | 67 | 12480 |
| 4 | 300/150 | 21 | 1.8 | 2.52 | 75 | 15709 |
| 5 | 1.5/1.5 | 1.3 | 0.7 | 1.24 | 14 | 271 |
| 5 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 16 | 384 |
| 5 | 4/4 | 2.21 | 0.7 | 1.24 | 17 | 509 |
| 5 | 6/6 | 2.71 | 0.7 | 1.24 | 19 | 641 |
| 5 | 10/10 | 3.9 | 0.7 | 1.24 | 22 | 974 |
| 5 | 16/10 | 4.8 | 0.7 | 1.24 | 25 | 1414 |
| 5 | 25/16 | 5.9 | 0.9 | 1.32 | 30 | 1993 |
| 5 | 35/16 | 6.9 | 0.9 | 1.4 | 33 | 2503 |
| 5 | 50/25 | 8.2 | 1 | 1.56 | 38 | 3453 |
| 7 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 15 | 332 |
| 7 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 16 | 432 |
| 8 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 16 | 388 |
| 8 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 18 | 507 |
| 10 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 18 | 470 |
| 10 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 19 | 616 |
| 12 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 18 | 507 |
| 12 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 20 | 671 |
| 14 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 19 | 556 |
| 14 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 21 | 740 |
| 16 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 20 | 612 |
| 16 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 22 | 819 |
| 19 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 20 | 679 |
| 19 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 23 | 916 |
| 21 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 21 | 745 |
| 21 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 24 | 1006 |
| 24 | 1.5/1.5 | 1.37 | 0.7 | 1.24 | 23 | 835 |
| 24 | 2.5/2.5 | 1.76 | 0.7 | 1.24 | 25 | 1132 |
