NYCWY PVC 0.6/1kV Power Cable
Voltage:0.6/1kV

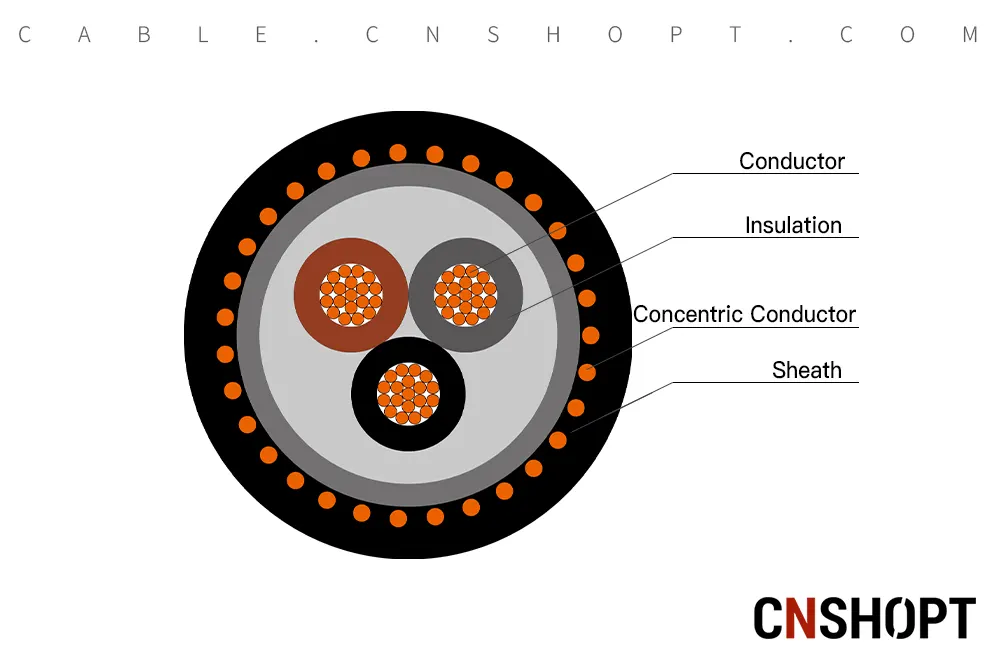

StructureConductorcopper conductor
InsulationPVC (Polyvinyl Chloride)
Concentric Conductorcopper wire and counter spiral copper tape
SheathPVC (Polyvinyl Chloride)
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

For use indoors, in cable ducts, outdoors and in ground for power plants, industrial plants, as well as in local power networks, if increased electrical protection is required.

STANDARDS

IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

Flame retardant according to IEC/EN 60332-1

CHARACTERISTICS

Voltage Rating Uo/U0.6/1kV
Temperature Rating-5°C to +70°C
Minimum Bending Radius15 x overall diameter

CONSTRUCTION

ConductorRE: Class 1 solid copper conductor
RM: Class 2 stranded, round copper conductor
SM: Class 2 stranded, sectorial copper conductor
InsulationPVC (Polyvinyl Chloride)
BeddingPVC (Polyvinyl Chloride)
Concentric ConductorWaveconal outer conductor – copper wire and counter spiral copper tape
SheathPVC (Polyvinyl Chloride)
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		CONDUCTOR TYPENOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
210/10RE19.4610
216/16RE20.4840
225/25RM24.41299
310/20RE19.4750
316/16RE21.41050
325/16RM25.51600
325/25RM25.51600
335/16SM25.71850
335/35SM27.61700
350/25SM28.72400
350/50SM28.72300
370/35SM33.83300
370/70SM32.82900
395/50SM37.84500
395/95SM37.8400
3120/70SM40.85000
3120/120SM41.85500
3150/70SM456000
3150/150SM466750
3185/95SM507500
3185/185SM518500
3240/120SM5710000
410/10RE20.4870
416/16RE23.41250
425/16RM27.61800
435/16SM28.62050
450/25SM32.82700
470/35SM36.83750
495/50SM43.95000
4120/70SM476300
4150/70SM517600
4185/95SM569300
4240/120SM6311600
