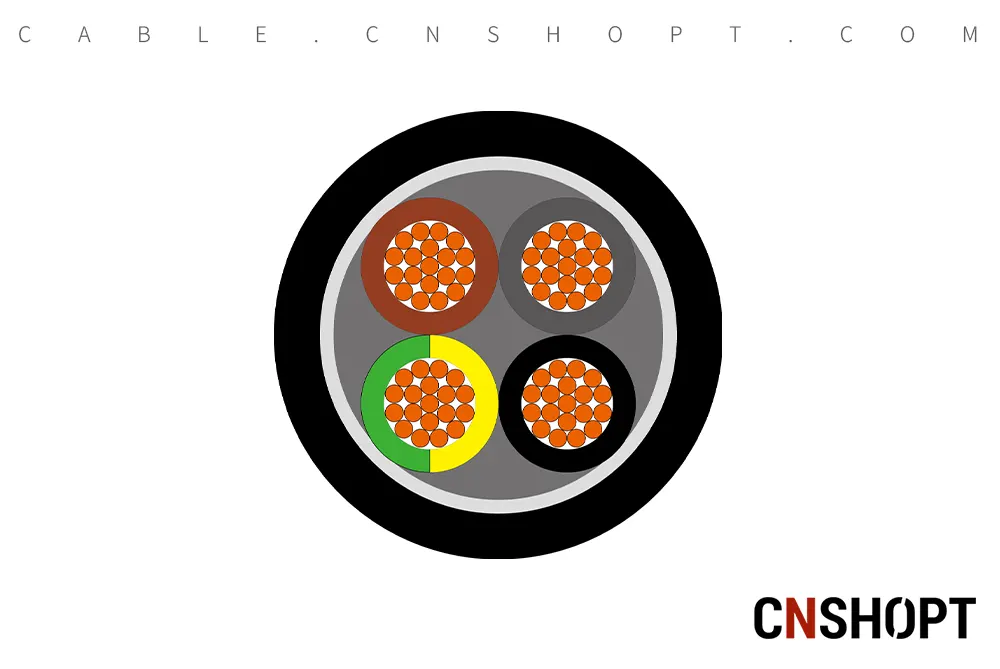

| N2XY - Power Cable | ||
|---|---|---|
| Voltage: | 0.6/1kV | |
| Structure | Conductor | Class 2 Stranded copper |
| Insulation | XLPE (Cross-Linked Polyethylene) | |
| Armour | Double galvanized steel tape | |
| Sheath | Polyvinyl chloride (PVC) | |
For installation indoors, in cable channels and in duct in ground in switchgear, power stations and industrial application, in harsh environments where a high level mechanical protection is required.
IEC 60502-1, VDE 0276-603, IS 1516.1, IEC/EN 60228
Flame retardant according to IEC/EN 60332-1
| Voltage Rating Uo/U | 0.6/1kV |
| Test Voltage | 3.5kV |
| Temperature Rating | Maximum Operating: +90ºC |
| Maximum Short-Circuit: +250°C | |
| Minimum Bending Radius | 12 x overall diameter |
| Conductor | Class 2 Stranded copper |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Filler | Polyvinyl chloride (PVC) |
| Armour | Double galvanized steel tape |
| Outer Sheath | Polyvinyl chloride (PVC) |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF OUTER SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 2 | 2.5 | 1.76 | 0.7 | 1.24 | 13 | 276 |
| 2 | 4 | 2.21 | 0.7 | 1.24 | 14 | 326 |
| 2 | 6 | 2.71 | 0.7 | 1.24 | 15 | 384 |
| 2 | 10 | 3.85 | 0.7 | 1.24 | 17 | 498 |
| 2 | 16 | 4.8 | 0.7 | 1.24 | 19 | 649 |
| 2 | 25 | 5.85 | 0.9 | 1.24 | 22 | 882 |
| 2 | 35 | 6.9 | 0.9 | 1.32 | 24 | 1113 |
| 2 | 50 | 8.1 | 1 | 1.4 | 27 | 1421 |
| 2 | 70 | 9.7 | 1.1 | 1.48 | 31 | 1899 |
| 2 | 95 | 11.4 | 1.1 | 1.64 | 35 | 2482 |
| 3 | 1.5 | 1.36 | 0.7 | 1.24 | 12 | 265 |
| 3 | 2.5 | 1.76 | 0.7 | 1.24 | 14 | 342 |
| 3 | 4 | 2.21 | 0.7 | 1.24 | 15 | 417 |
| 3 | 6 | 2.71 | 0.7 | 1.24 | 16 | 501 |
| 3 | 10 | 3.85 | 0.7 | 1.24 | 19 | 704 |
| 3 | 16 | 4.8 | 0.7 | 1.24 | 21 | 938 |
| 3 | 25 | 5.85 | 0.9 | 1.24 | 24 | 1315 |
| 3 | 35 | 6.9 | 0.9 | 1.32 | 26 | 1682 |
| 3 | 50 | 8.1 | 1 | 1.4 | 29 | 2176 |
| 3 | 70 | 9.7 | 1.1 | 1.48 | 34 | 2949 |
| 3 | 95 | 11.4 | 1.1 | 1.64 | 38 | 4004 |
| 3 | 120 | 12.65 | 1.2 | 1.72 | 42 | 5215 |
| 3 | 150 | 14.4 | 1.4 | 1.88 | 47 | 6413 |
| 3 | 185 | 15.75 | 1.6 | 2.04 | 51 | 7719 |
| 3 | 240 | 18.2 | 1.7 | 2.2 | 58 | 9961 |
| 3 | 16+10 | 4.8 | 0.7 | 1.24 | 21 | 1073 |
| 3 | 25+16 | 5.85 | 0.9 | 1.24 | 25 | 1511 |
| 3 | 35+16 | 6.9 | 0.9 | 1.32 | 27 | 1861 |
| 3 | 50+25 | 8.1 | 1 | 1.4 | 30 | 2377 |
| 3 | 70+35 | 9.7 | 1.1 | 1.56 | 35 | 3235 |
| 3 | 95+70 | 11.4 | 1.1 | 1.64 | 39 | 4634 |
| 3 | 120+70 | 12.65 | 1.2 | 1.8 | 44 | 5813 |
| 3 | 150+70 | 14.4 | 1.4 | 1.88 | 48 | 6888 |
| 3 | 185+95 | 15.75 | 1.6 | 2.04 | 52 | 8412 |
| 3 | 240+120 | 18.2 | 1.7 | 2.2 | 59 | 10679 |
| 4 | 1.5 | 1.36 | 0.7 | 1.24 | 13 | 309 |
| 4 | 2.5 | 1.76 | 0.7 | 1.24 | 14 | 369 |
| 4 | 4 | 2.21 | 0.7 | 1.24 | 16 | 469 |
| 4 | 6 | 2.71 | 0.7 | 1.24 | 17 | 577 |
| 4 | 10 | 3.85 | 0.7 | 1.24 | 20 | 821 |
| 4 | 16 | 4.8 | 0.7 | 1.24 | 22 | 1113 |
| 4 | 25 | 5.85 | 0.9 | 1.32 | 25 | 1593 |
| 4 | 35 | 6.9 | 0.9 | 1.4 | 28 | 2060 |
| 4 | 50 | 8.1 | 1 | 1.48 | 32 | 2637 |
| 4 | 70 | 9.7 | 1.1 | 1.56 | 36 | 3611 |
| 4 | 95 | 11.4 | 1.1 | 1.72 | 41 | 5355 |
| 4 | 120 | 12.65 | 1.2 | 1.88 | 46 | 6590 |
| 4 | 150 | 14.4 | 1.4 | 1.96 | 51 | 8096 |
| 4 | 185 | 15.75 | 1.6 | 2.12 | 56 | 9795 |
| 4 | 240 | 18.2 | 1.7 | 2.36 | 63 | 12585 |
| 5 | 1.5 | 1.36 | 0.7 | 1.24 | 14 | 368 |
| 5 | 2.5 | 1.76 | 0.7 | 1.24 | 15 | 432 |
| 5 | 4 | 2.21 | 0.7 | 1.24 | 17 | 543 |
| 5 | 6 | 2.71 | 0.7 | 1.24 | 18 | 679 |
| 5 | 10 | 3.85 | 0.7 | 1.24 | 21 | 981 |
| 5 | 16 | 4.8 | 0.7 | 1.24 | 24 | 1351 |
| 5 | 25 | 5.85 | 0.9 | 1.32 | 28 | 1960 |
| 5 | 35 | 6.9 | 0.9 | 1.4 | 31 | 2539 |
| 5 | 50 | 8.1 | 1 | 1.48 | 35 | 3333 |
| 5 | 70 | 9.7 | 1 | 1.48 | 39 | 4507 |
| 5 | 95 | 11.4 | 1.1 | 1.56 | 44 | 6038 |
