| H07ZZ-F - EN 50525-3-21 LSZH Rubber Flexible Cable | ||
|---|---|---|
| Voltage: | 450/750V | |

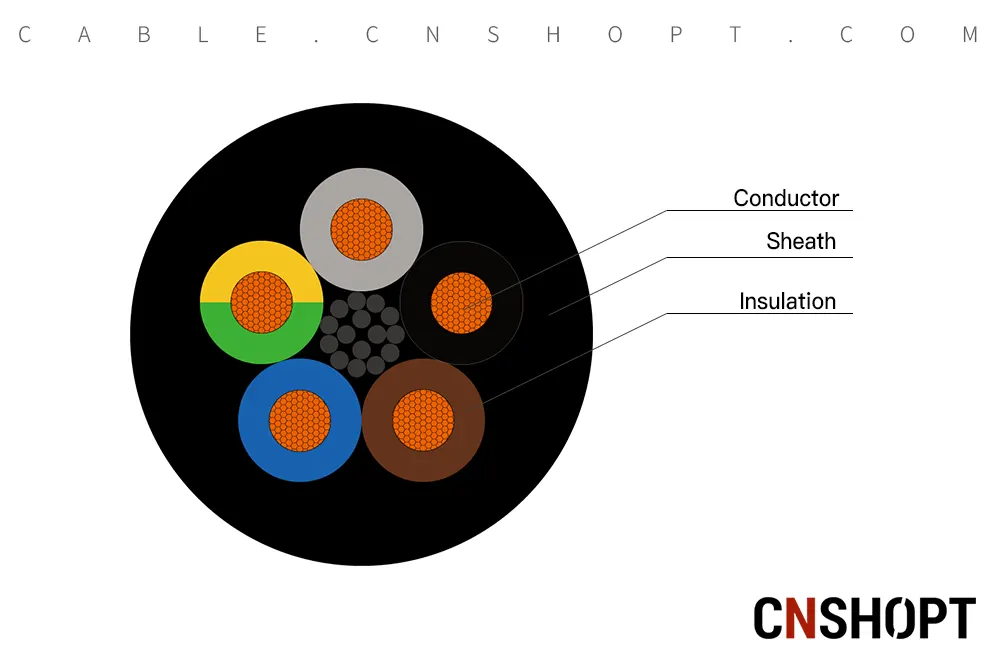

| Structure | Conductor | Class 5 flexible copper conductor |
| Insulation | LSZH (Low Smoke Zero Halogen) cross-linked compound | |
| Screen | None | |
| Sheath | LSZH (Low Smoke Zero Halogen) cross-linked compound | |
For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Examples of use include supplying mobile power units, UPS installations, stage lighting and audio visual equipment. This cable will withstand medium mechanical stresses and is suitable for both installation indoors and outdoors.
EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228
Flame Retardant according to IEC/EN 60332-3-10
| Voltage Rating Uo/U | 450/750V |
| Temperature Rating | Fixed: -20°C to +90°C |
| Flexed: -5°C to +50°C | |
| Minimum Bending Radius | Fixed: 4 x overall diameter |
| Flexed: 6 x overall diameter |
| Conductor | Class 5 flexible copper conductor |
| Insulation | LSZH (Low Smoke Zero Halogen) cross-linked compound |
| Sheath | LSZH (Low Smoke Zero Halogen) cross-linked compound |
*Note: Sizes from 5x35mm2 are not harmonised (07ZZ-F)
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | A2 GLANDS Brass | A2PL GLAND Plastic |
|---|---|---|---|---|---|
| 1 | 1.5 | 6.4 | 63 | - | - |
| 1 | 2.5 | 7.1 | 76 | - | - |
| 1 | 4 | 8.1 | 107 | 20S | 20 |
| 1 | 6 | 8.85 | 140 | 20S | 20 |
| 1 | 10 | 10.7 | 213 | 20S | 20 |
| 1 | 16 | 12.1 | 291 | 20 | 25 |
| 1 | 25 | 14.25 | 415 | 25 | 25 |
| 1 | 35 | 16.1 | 539 | 25 | 25 |
| 1 | 50 | 18.55 | 740 | 25 | 32 |
| 1 | 70 | 20.95 | 989 | 32 | 32 |
| 1 | 95 | 23.4 | 1290 | 32 | 40 |
| 1 | 120 | 25.7 | 1592 | 40 | 40 |
| 1 | 150 | 28.3 | 1957 | 40 | 40 |
| 1 | 185 | 31 | 2350 | 50S | 50 |
| 1 | 240 | 34.45 | 3099 | 50 | 63 |
| 1 | 300 | 37.7 | 3687 | 50 | - |
| 1 | 400 | 42.1 | 4850 | 63S | - |
| 1 | 500 | 46.65 | 5998 | 63 | - |
| 2 | 1 | 8.85 | 112 | - | - |
| 2 | 1.5 | 9.75 | 135 | 20S | 20 |
| 2 | 2.5 | 11.65 | 190 | 20 | 25 |
| 2 | 4 | 13.45 | 255 | 25 | - |
| 2 | 6 | 14.95 | 335 | 25 | - |
| 2 | 10 | 20.15 | 590 | 32 | - |
| 2 | 16 | 22.95 | 821 | 32 | - |
| 2 | 25 | 27.5 | 1172 | 40 | - |
| 3 | 1 | 9.5 | 125 | - | - |
| 3 | 1.5 | 10.55 | 129 | 20 | 20 |
| 3 | 2.5 | 12.45 | 250 | 25 | 25 |
| 3 | 4 | 14.45 | 330 | 25 | - |
| 3 | 6 | 16.05 | 440 | 25 | - |
| 3 | 10 | 21.65 | 800 | 32 | - |
| 3 | 16 | 24.7 | 1150 | 40 | - |
| 3 | 25 | 29.55 | 1680 | 50S | - |
| 3 | 35 | 33.2 | 2170 | 50S | - |
| 4 | 1 | 10.55 | 170 | 20S | - |
| 4 | 1.5 | 11.65 | 196 | 20 | 25 |
| 4 | 2.5 | 13.8 | 275 | 25 | 25 |
| 4 | 4 | 15.95 | 388 | 25 | 25 |
| 4 | 6 | 17.85 | 515 | 32 | 32 |
| 4 | 10 | 23.7 | 882 | 40 | 40 |
| 4 | 16 | 26.95 | 1234 | 40 | 40 |
| 4 | 25 | 32.75 | 1811 | 50S | 50 |
| 4 | 35 | 36.8 | 2365 | 50 | 63 |
| 4 | 50 | 42.6 | 3212 | 63S | - |
| 4 | 70 | 48.35 | 4320 | 63 | - |
| 4 | 95 | 54.7 | 5572 | 73S | - |
| 4 | 120 | 59.5 | 6930 | 75 | - |
| 4 | 150 | 65.5 | 8419 | - | - |
| 4 | 185 | 72 | 10165 | - | - |
| 4 | 240 | 81.5 | 13420 | - | - |
| 5 | 1 | 11.65 | 205 | 20 | - |
| 5 | 1.5 | 12.8 | 242 | 25 | 25 |
| 5 | 2.5 | 15.15 | 341 | 25 | 25 |
| 5 | 4 | 17.75 | 495 | 32 | 32 |
| 5 | 6 | 19.85 | 642 | 32 | 32 |
| 5 | 10 | 26 | 1090 | 40 | 40 |
| 5 | 16 | 29.85 | 1534 | 50S | 50 |
| 5 | 25 | 36.2 | 2291 | 50 | 63 |
| 5 | 35 | 39.5 | 2700 | - | - |
| 5 | 50 | 44.2 | 3730 | 63S | - |
| 5 | 70 | 50.4 | 5022 | - | - |
| 5 | 95 | 56.2 | 6520 | - | - |
| 5 | 120 | 64.1 | 8080 | - | - |
| 5 | 150 | 70.1 | 8660 | - | - |
| 7 | 1.5 | 16.7 | 355 | 25 | 32 |
| 12 | 1.5 | 20 | 660 | 32 | 32 |
| 19 | 1.5 | 27.5 | 788 | 40 | 40 |
| 27 | 1.5 | 31.5 | 1077 | 40 | 40 |
| 37 | 1.5 | 36.5 | 1358 | 50S | 50 |
