H05RN-F Flexible Rubber Cable
Voltage300/500V
StructureConductorClass 5 flexible copper conductor
InsulationEPR (Ethylene Propylene Rubber) EI4
ScreenNone
SheathPCP (Polychloroprene) EM2
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

For general use in domestic premises, kitchens, offices and industrial equipment where the cables are subjected to low mechanical stress. Suitable for dry, damp and wet installations, including temporary outdoor power. Supply of electricity and communications in buildings and other civil engineering works with the objective of limiting the generation and spread of fire.

STANDARDS

IEC/EN 50525-2-21, CEI 20-107/2-21, CEI 20-19/4 (CENELEC HD 22.4 S4), BS 6500:2000, NF C 32-102-4 VDE 0282-4, EN 50575:2014 + EN 50575/A1:2016

CHARACTERISTICS

Voltage Rating U/Uo300/500V
Temperature RatingOperating: -40°C to +60°C
Minimum installation and use temperature: -25°C
Maximum temperature of short circuit: +200°C
Minimum Bending RadiusFixed: 4 x overall diameter
Mobile: 6 x overall diameter

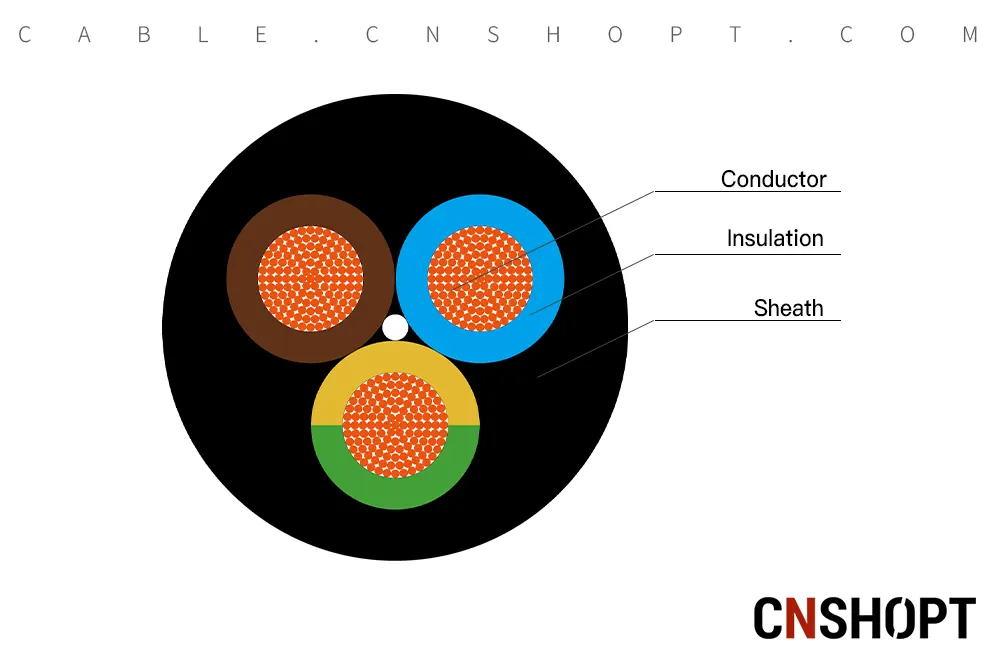

CONSTRUCTION

ConductorClass 5 flexible copper conductor
InsulationEPR (Ethylene Propylene Rubber) EI4
SheathPCP (Polychloroprene) EM2
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		MAXIMUM CONDUCTOR
DIAMETER
mm		NOMINAL THICKNESS
OF INSULATION
mm		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
MinimumMaximum
20.750.950.65.77.444
211.300.66.18.055
30.750.950.66.28.160
311.300.66.58.572
40.750.950.66.88.882
411.300.67.19.387
