H05GGH2-F Flat Rubber Cable
Voltage300/500V
StructureConductorClass 5 flexible stranded Copper
InsulationEVA (Ethylene Vinyl Acetate) EI3 Type rubber
ScreenNone
SheathRubber EM4 Type
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

H05GGH2-F cables are in a flat formation for fixed and mobile equipment rated 300/500V, typically in offices and kitchens.  Suitable for use indoor, outdoors (temporary installations) and in dry, wet and contained explosive atmosphere environments under no mechanical or tensile stresses. EVA insulation offers a higher conductor operating temperature.

STANDARDS

EN 50525-1/2-21, BS 7919, IEC/EN 60228, DIN VDE 0282-1/11, DIN VDE 0295, DIN VDE 0298-300, IEC 60245-7,IEC 60245-1/2, HD 516, EN 50395, EN 50396, HD 22.1/11,

HD 308, HD 383, HD 516 Tab.7c, VDE 0298-4,

Flame Retardant to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating300/500V
Temperature RatingMaximum conductor operating temperature: 110°C
Maximum temperature on cable surface: 90°C
Minimum installation temperature: 0°C
Maximum conductor short-circuit temperature: 250°C

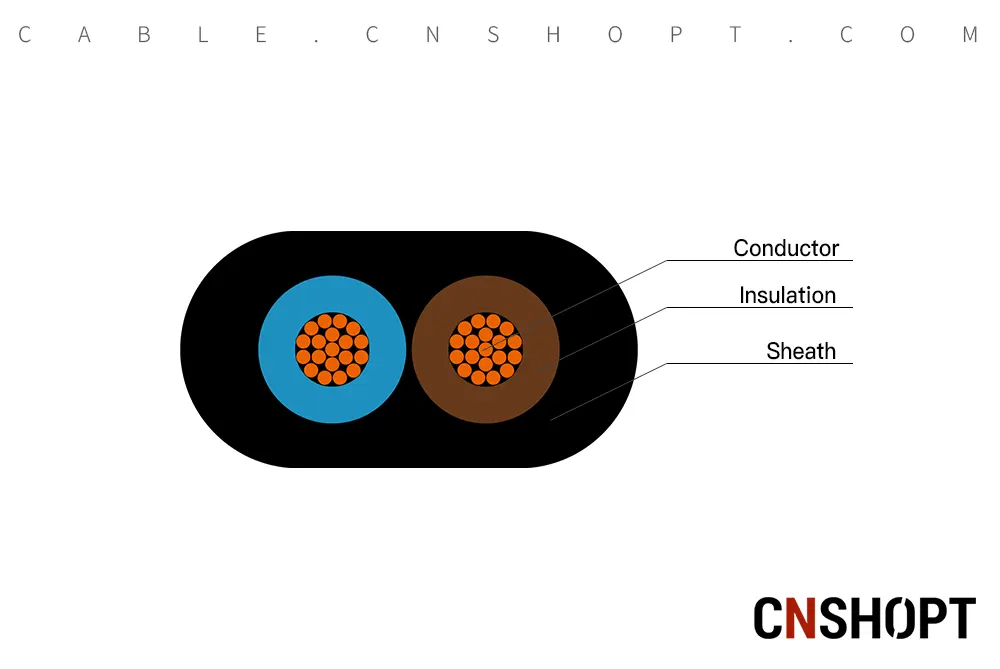

CONSTRUCTION

ConductorClass 5 flexible stranded Copper
InsulationEVA (Ethylene Vinyl Acetate) EI3 Type rubber
SheathRubber EM4 Typ
NUMBER OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		NOMINAL HEIGHT X WIDTH
mm		NOMINAL CABLE WEIGHT
kg/km
20.754.2 - 6.760
