| H05GG-F EN 50525-2-21 Flexible Rubber Cable | ||
|---|---|---|
| Voltage | 300/500V | |

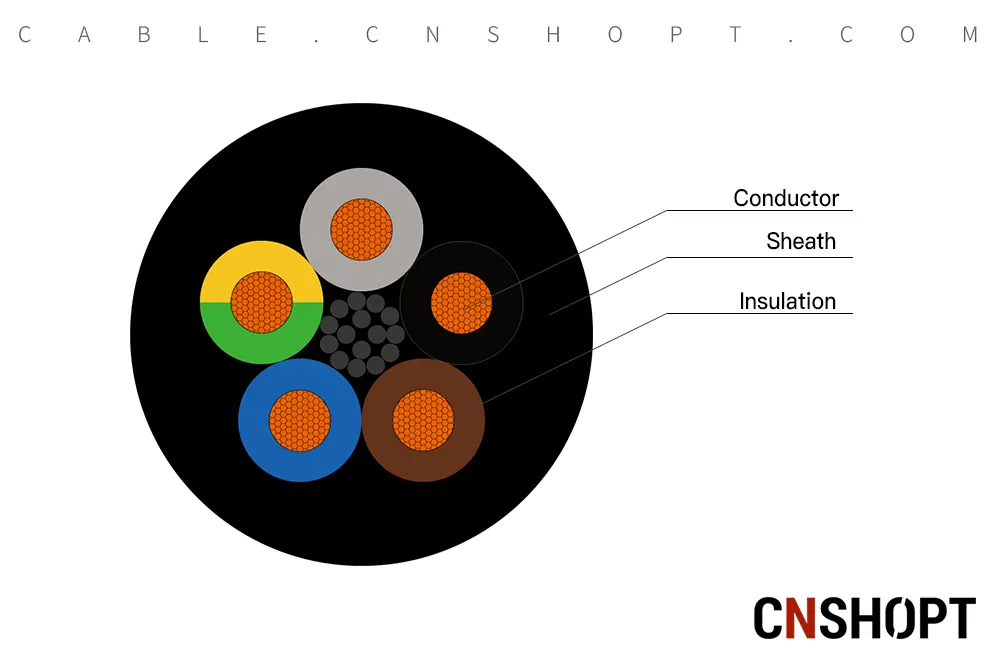

| Structure | Conductor | Class 5 flexible tinned copper conductor |
| Insulation | EVA Rubber (Ethylene Vinyl Acetate) EI3 | |
| Screen | None | |
| Sheath | Rubber EM4 | |
Use in domestic premises, kitchens and offices, for ordinary duty applications and supplying appliances where cables are subject to low mechanical stresses (e.g. vacuum cleaners, cooking appliances, soldering irons, toasters, domestic portable tools, hand held inspection lamps) use outdoors for temporary periods of short duration.
EN 50525-2-21
| Voltage Rating U/Uo | 300/500V |
| Temperature Rating | Operating: -5°C to +110° |
| Maximum temperature of short circuit: +250°C | |
| Minimum Bending Radius | Fixed: 3 x overall diameter |
| Mobile: 4 x overall diameter |
| Conductor | Class 5 flexible tinned copper conductor |
| Insulation | EVA Rubber (Ethylene Vinyl Acetate) EI3 |
| Sheath | Rubber EM4 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 2 | 0.75 | 6.1 | 53 |
| 2 | 1 | 6.6 | 64 |
| 2 | 1.50 | 7.,8 | 95 |
| 2 | 2.50 | 9.2 | 140 |
| 2 | 0.75 | 6.6 | 65 |
| 3 | 1 | 7.0 | 77 |
| 3 | 1.50 | 8.4 | 115 |
| 3 | 2.50 | 9.9 | 170 |
| 3 | 4 | 11.7 | 240 |
| 3 | 6 | 13.3 | 320 |
| 4 | 0.75 | 7.2 | 80 |
| 4 | 1 | 7.6 | 95 |
| 4 | 1.50 | 9.4 | 145 |
| 4 | 2.50 | 11.1 | 210 |
| 4 | 4 | 13.0 | 300 |
| 4 | 6 | 14.5 | 405 |
| 5 | 0.75 | 8.1 | 100 |
| 5 | 1 | 8.4 | 115 |
| 5 | 1.50 | 10.3 | 170 |
| 5 | 2.50 | 12.4 | 255 |
