| H05BB-F Rubber Cable | ||
|---|---|---|
| Voltage | 300/500V | |

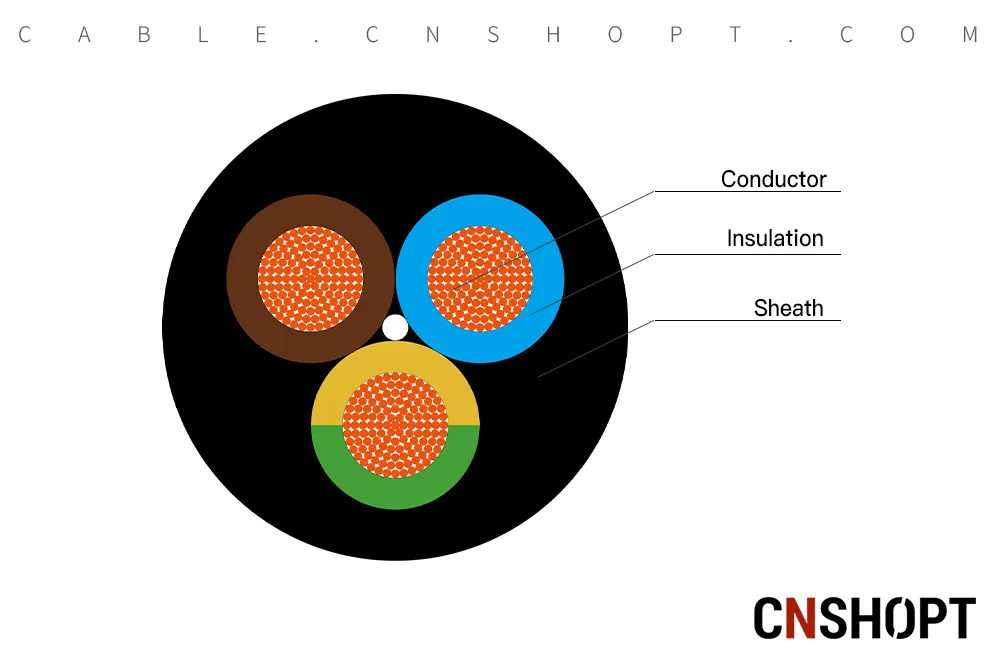

| Structure | Conductor | Class 5 flexible stranded Copper |
| Insulation | EPDM (Ethylene Propylene Diene Monomer) EI6 Type | |
| Screen | None | |
| Sheath | CPE Rubber (Chlorinated Polyethylene) EM7 Type | |
H05BB-F cables for fixed and mobile equipment connections rated 300/500V in offices and kitchen settings. Suitable for use indoors, temporarily outdoors, in wet, dry and contained explosive environments where the application is not under mechanical stress.
EN 50525-1, EN 50525-2-21 BS 7919, IEC/EN 60228, IEC 60245-1/2/4, DIN VDE 0282-1/12, DIN VDE 0295, DIN VDE 0298-4/300, EN 50395, EN 50396, HD 22.1/12, HD 308, HD 383, HD 516 Tab.7c,
Flame Retardant to IEC/EN 60332-1-2
| Voltage Rating | 300/500V |
| Temperature Rating | -25°C to +90°C |
| Maximum conductor short-circuit temperature: 250°C |
| Conductor | Class 5 flexible stranded Copper |
| Insulation | EPDM (Ethylene Propylene Diene Monomer) EI6 Type |
| Sheath | CPE Rubber (Chlorinated Polyethylene) EM7 Type |
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL MINMUM OUTER DIAMETER mm | NOMINAL MAXIMUM OUTER DIAMETER mm | NOMINAL CABLE WEIGHT kg/km |
|---|---|---|---|---|
| 2 | 0.75 | 5.7 | 7.4 | 58 |
| 2 | 1 | 6.1 | 8 | 71 |
| 2 | 1.5 | 7.6 | 9.8 | 105 |
| 2 | 2.5 | 9 | 11.6 | 185 |
| 2 | 4 | 10.6 | 13.7 | 218 |
| 3 | 0.75 | 6.2 | 8.1 | 74 |
| 3 | 1 | 6.5 | 8.5 | 85 |
| 3 | 1.5 | 8 | 10.4 | 125 |
| 3 | 2.5 | 9.6 | 12.4 | 180 |
| 3 | 4 | 11.3 | 14.5 | 262 |
| 3 | 6 | 12.8 | 16.3 | 348 |
| 4 | 0.75 | 6.8 | 8.8 | 78 |
| 4 | 1 | 7.1 | 9.3 | 103 |
| 4 | 1.5 | 9 | 11.6 | 160 |
| 4 | 2.5 | 10.7 | 13.8 | 228 |
| 4 | 4 | 12.7 | 16.2 | 335 |
| 4 | 6 | 14.2 | 18.1 | 404 |
| 5 | 0.75 | 7.6 | 9.9 | 99 |
| 5 | 1 | 8 | 10.3 | 134 |
| 5 | 1.5 | 9.8 | 12.7 | 180 |
| 5 | 2.5 | 11.9 | 15.3 | 278 |
| 5 | 4 | 14.6 | 18.6 | 430 |
