H03RR-F Rubber Cable
Voltage300V
StructureConductorClass 6 extra flexible fine stranded copper
InsulationEPR (Ethylene Propylene Rubber) EI4
ScreenNone
SheathRubber EM3
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us


APPLICATION

H03RR-F cables are small sized copper cables for use in fixed and mobile equipment connections in offices and kitchens. Suitable for use indoors, in temporary outdoor installations, and in dry, wet and contained explosive atmospheres environments. Not suitable for permanent outdoor use or in agricultural and industrial workshops.

STANDARDS

EN 50525-1/2-22, DIN VDE 0282-1/14, BS 7919, HD 308,

IEC 60245-1/2/4, HD 516, DIN VDE 0298-4/300, EN 50395,

EN 50396, EN/IEC 60228, HD 383, DIN VDE 0295, HD 516 T7c

Flame retardant according to EN/IEC 60332-1-2, Ozone resistant

CHARACTERISTICS

Voltage Rating 300V
Temperature Rating Maximum conductor operating temperature: 60°C
Maximum conductor short-circuit temperature: 200°C
Minimum installation temperature: -25°C

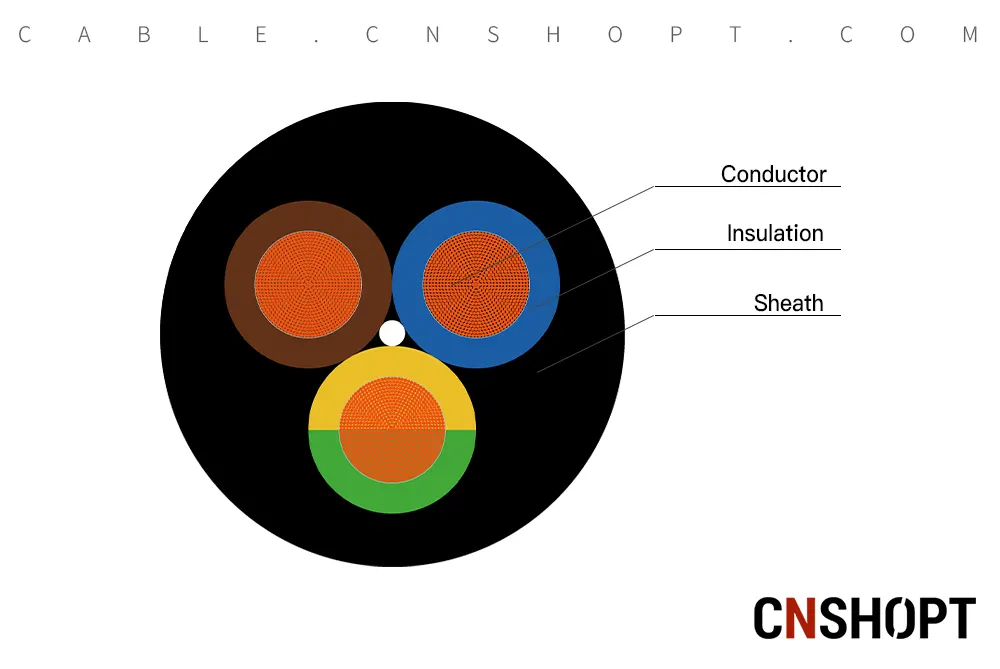

CONSTRUCTION

Conductor Class 6 extra flexible fine stranded copper
Separator Tape
Insulation EPR (Ethylene Propylene Rubber) EI4
Sheath Rubber EM3
NUMBER OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		NOMINAL MINMUM OUTER DIAMETER
mm		NOMINAL MAXIMUM OUTER DIAMETER
mm		NOMINAL CABLE WEIGHT
kg/km
20.755.77.460
215.97.872
21.56.88.998
30.756.07.974
316.38.385
31.57.29.4120
