H01N2-E Welding Cable - EN 50525-2-81 Welding Cable
Voltage100V
StructureConductorGenerally to Class 6 flexible copper conductor
InsulationPET (Polyester Tape)
ScreenNone
SheathRubber compound
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.

STANDARDS

EN 50525-2-81, HD 22.6, VDE 0282-6, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating 100V
Temperature Rating Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius Flexed: 6 x overall diameter

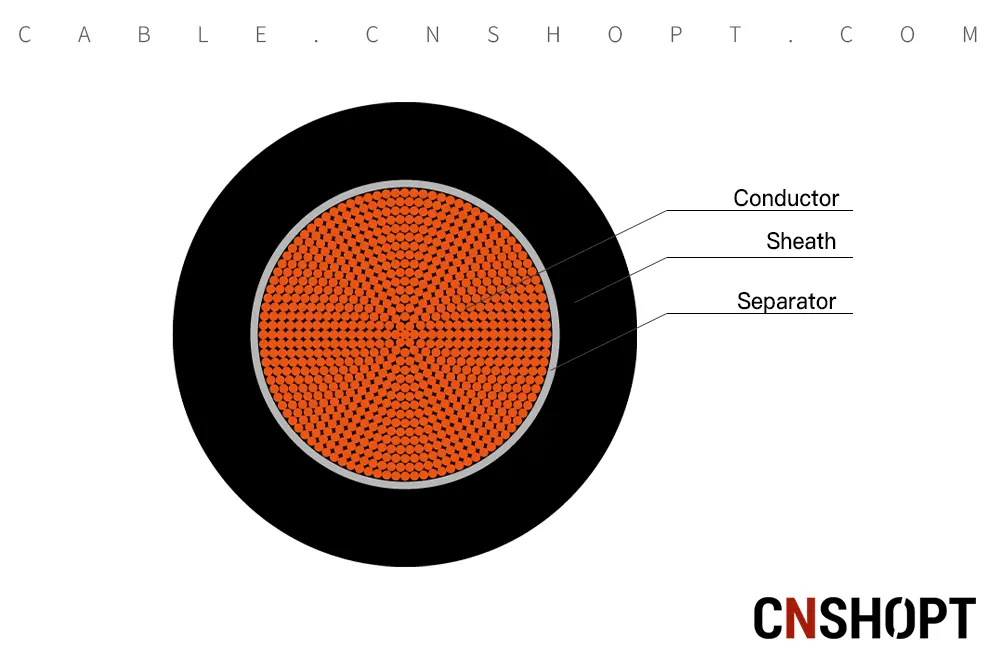

CONSTRUCTION

Conductor Generally to Class 6 flexible copper conductor
Separator PET (Polyester Tape)
Sheath Rubber compound
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		NOMINAL THICKNESS OF INSULATION
mm		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
11201.818.51195
11501.821.31485
