H01N2-D Welding Cable - EN 50525-2-81 Welding Cable

[list:title]
[list:title]
H01N2-D Welding Cable - EN 50525-2-81 Welding Cable
Voltage100V
StructureConductorGenerally to Class 6 flexible copper conductor
InsulationPET (Polyester Tape)
ScreenNone
SheathRubber compound
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.

STANDARDS

EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6,BS 638 Part 4

Flame Retardant according to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating100V
Temperature RatingFixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending RadiusFlexed: 6 x overall diameter

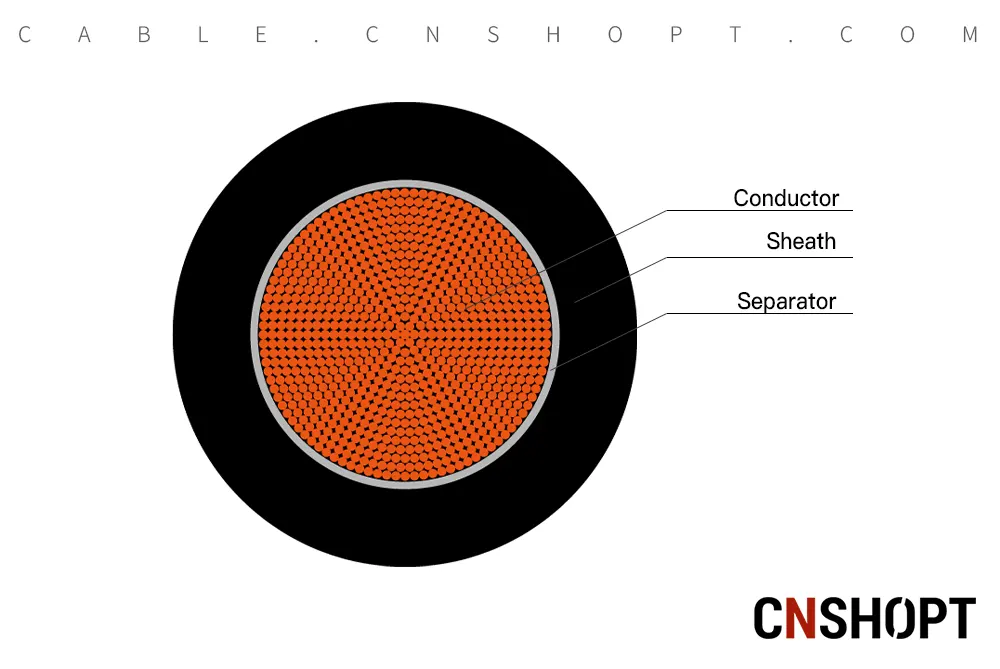

CONSTRUCTION

ConductorGenerally to Class 6 flexible copper conductor
SeparatorPET (Polyester Tape)
SheathRubber compound
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		NOMINAL THICKNESS OF INSULATION
mm		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
11029146
116210204
125211.5290
135212.5384
1502.214.5535
1702.416.5716
1952.618.5943
11202.820.51235
11503231556
