H05VV-F Flexible Power Cable
Voltage:300/500V

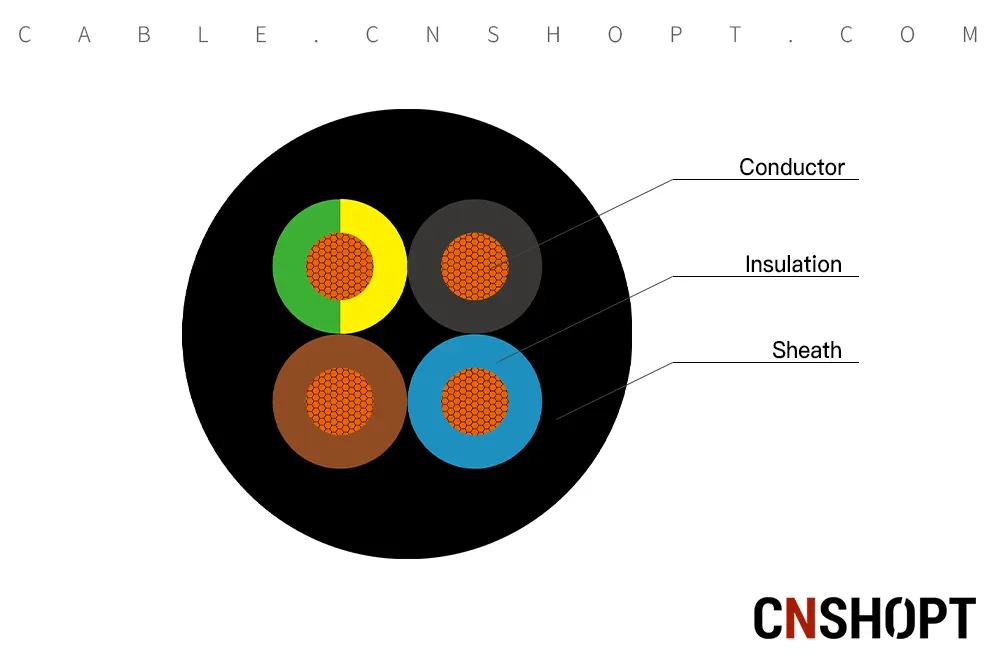

StructureConductorClass 5 flexible copper conductor
InsulationPVC (Polyvinyl Chloride)
ScreenNone
SheathPVC (Polyvinyl Chloride)
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.

STANDARDS

EN 50525-2-11, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating Uo/U 300/500V
Temperature Rating Flexed: +5°C to +70°C
Minimum Bending Radius Flexed: 8 x overall diameter

CONSTRUCTION

Conductor Class 5 flexible copper conductor
Insulation PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		NOMINAL THICKNESS OF INSULATION
mm		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
20.750.66.357
210.66.665
21.50.77.484
22.50.89.1130
30.750.66.768
310.6778
31.50.78.1108
32.50.89.9163
340.811.3227
40.750.67.382
410.67.9100
41.50.79134
42.50.810.8201
50.750.68.1102
510.68.6120
51.50.710166
