ABC Cable - Aerial Bundle Cable
Voltage:0.6/1kV

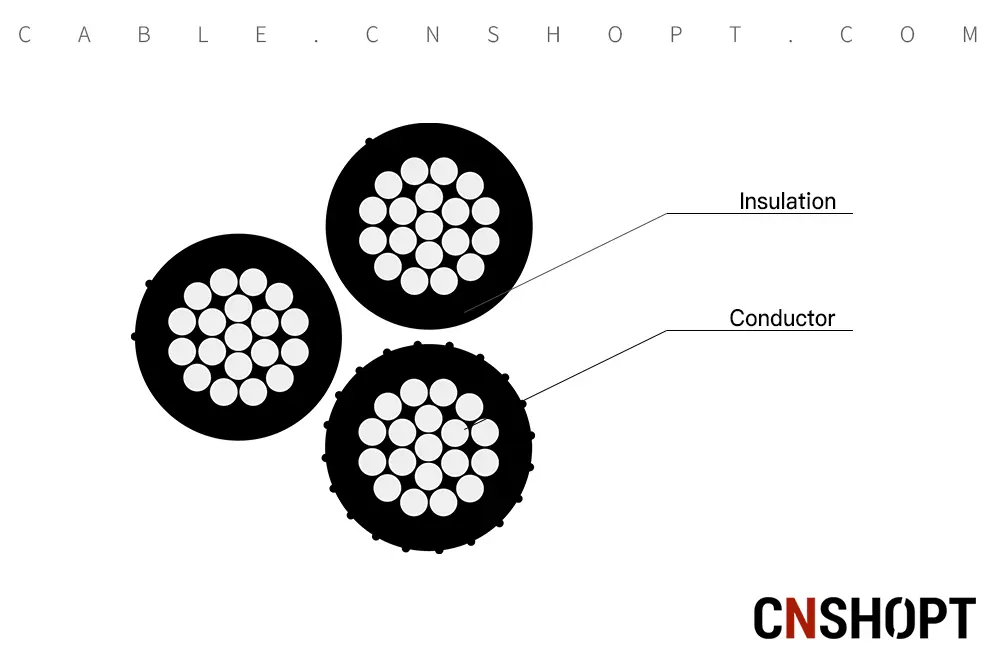

Structure:ConductorClass 2 stranded Aluminium
InsulationXLPE (Cross-linked polyethylene) compound TIX 2
ScreenNone
SheathNone
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

ABC cable use for distribution low power overhead networks in metropolitan, urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections.

STANDARDS

BS 7870-5, HD 626 S1, EN 60228,

CONSTRUCTION

Phase ConductorClass 2 stranded Aluminium
Neutral ConductorClass 2 stranded Aluminium
InsulationXLPE (Cross-linked polyethylene) compound TIX 2
Insulation ColourBlack
Core IdentificationPhases by longitudinal ribs (I, II, III)
Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs)

CHARACTERISTICS

Voltage Rating Uo/U0.6/1kV
Test Voltage4kV
Temperature RatingMinimum temperature for cable laying: -5°C
Maximum working temperature: 75°C
Maximum short-circuit temperature: 250°C
Minimum Bending Radius12 x overall diameter
NO. OF
CORES		NOMINAL CROSS SECTIONAL AREA
mm²		NOMINAL INSULATION THICKNESS
mm		MAX DIAMETER PHASE CONDUCTOR
(EXC. RIBS)
mm		MAX DIAMETER NEUTRAL CORE
(INC. RIBS)
mm		NOMINAL WEIGHT
kg/km
2251.39.710.2200
2351.310.711.2266
2501.512.112.6374
2701.513.814.3506
2951.716.116.6681
21201.717.618.1816
3251.39.710.2318
3351.310.711.2414
3501.512.112.6545
3701.513.814.3756
3951.716.116.6999
31201.717.618.11224
5251.39.710.2530
5351.310.711.2690
5501.512.112.6910
5701.513.814.31260
5951.716.116.61665
51201.717.618.12040
