![[list:title]](/static/upload/other/20240902/aac.webp)
![[list:title]](/static/upload/other/20240902/aac-structure.webp)
| AAC - All Aluminium Conductor | ||
|---|---|---|
| Voltage: | High Voltage | |

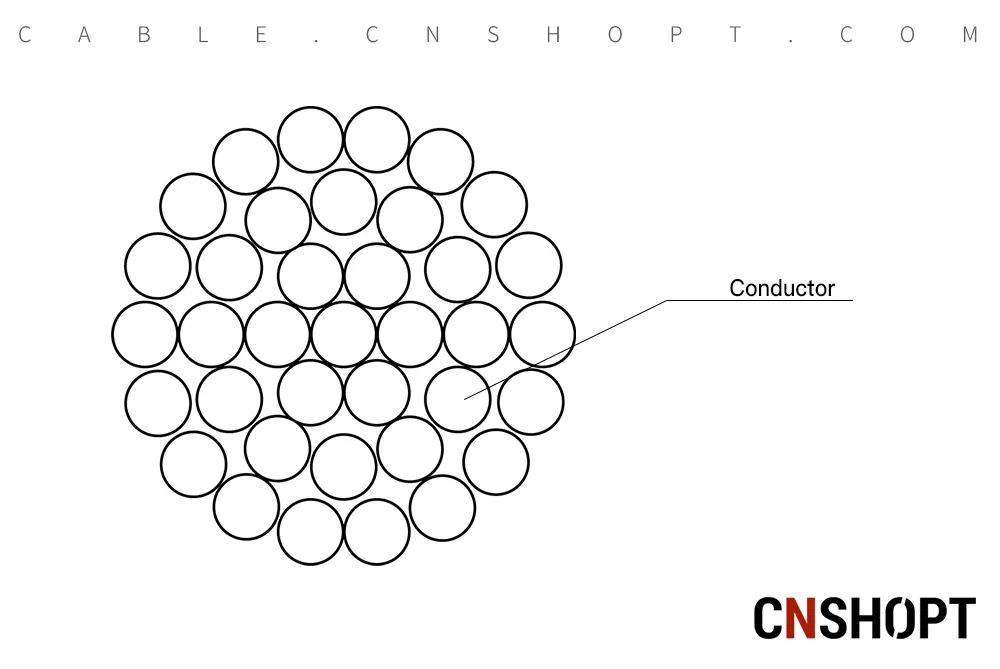

| Structure: | Conductor | Aluminium |
| Insulation | None | |
| Screen | None | |
| Sheath | None | |
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%. AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance.
ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018
| Conductor | Hard drawn aluminium conductor as per EN 60889 Type AL1 |
| CORE | SIZE AWG-MCM | STRANDING N2 X Q mm | SECTION mm2 | OVERALL DIAMETER mm | CABLE WEIGHT kg/km | RATED STRENGTH kN | ELECTRICAL RESISTANCE DC ohms/km | CURRENT CARRYING CAPACITY (1) A |
|---|---|---|---|---|---|---|---|---|
| PEACHBELL | 6 | 7 x 1.55 | 13.21 | 4.65 | 36.6 | 2.5 | 1.1702 | 110 |
| ROSE | 4 | 7 x 1.96 | 21.12 | 5.88 | 58.3 | 3.92 | 1.3638 | 145 |
| IRIS | 2 | 7 x 2.47 | 33.54 | 7.41 | 92.7 | 6.01 | 0.0857 | 195 |
| PANSY | 1 | 7 x 2.78 | 42.49 | 8.34 | 116.8 | 7.3 | 0.6801 | 225 |
| POPPY | 1/0 | 7 x 3.12 | 53.52 | 9.36 | 147.5 | 8.86 | 0.539 | 260 |
| ASTER | 2/0 | 7 x 3.5 | 67.34 | 10.5 | 185.9 | 11.17 | 0.4275 | 305 |
| PHLOX | 3/0 | 7 x 3.93 | 84.91 | 11.79 | 234.4 | 13.35 | 0.3392 | 350 |
| OXLIP | 4/0 | 7 x 4.42 | 107.4 | 13.26 | 295.6 | 17.05 | 0.2689 | 410 |
| SNEEZEWORTH | 250 | 7 x 4.8 | 127.6 | 14.4 | 349.3 | 20.12 | 0.2273 | 455 |
| VALERIAN | 250 | 17 x 2.91 | 126.4 | 14.55 | 349.3 | 20.74 | 0.2273 | 455 |
| DAISY | 266.8 | 7 x 4.96 | 135.3 | 14.88 | 327.8 | 21.5 | 0.2133 | 475 |
| LAUREL | 266.8 | 19 x 3.01 | 135.2 | 15.05 | 327.8 | 22.12 | 0.2133 | 475 |
| PEONY | 300 | 19 x 3.19 | 151.9 | 15.95 | 419.1 | 24.38 | 0.1897 | 515 |
| TULIP | 336.4 | 19 x 3.38 | 170.5 | 16.9 | 470 | 27.37 | 0.1691 | 555 |
| DAFFODIL | 350 | 19 x 3.45 | 177.6 | 17.25 | 489 | 28.45 | 0.1626 | 565 |
| CANNA | 397.5 | 19 x 3.68 | 202.1 | 18.4 | 55.4 | 31.64 | 0.1431 | 615 |
| GOLDENTUFT | 450 | 19 x 3.91 | 228.1 | 19.55 | 682.6 | 35.11 | 0.1264 | 665 |
| COSMOS | 477 | 19 x 4.02 | 241.2 | 20.1 | 666.4 | 37.2 | 0.1193 | 690 |
| SYRINGA | 477 | 37 x 2.88 | 241 | 20.16 | 666.4 | 38.67 | 0.1193 | 690 |
| ZINNIA | 500 | 19 x 4.12 | 253.3 | 20.6 | 698.6 | 38.98 | 0.1138 | 715 |
| HYACINTH | 500 | 37 x 2.95 | 252.9 | 20.65 | 698.6 | 40.54 | 0.1138 | 715 |
| DAHLIA | 556.5 | 19 x 4.35 | 282.4 | 21.75 | 777.4 | 43.39 | 0.1022 | 765 |
| MISTLETOE | 556.5 | 37 x 3.11 | 281.1 | 21.77 | 777.4 | 44.25 | 0.1022 | 765 |
| MEADOWSWEET | 600 | 37 x 3.23 | 303.2 | 22.61 | 838.1 | 47.62 | 0.09482 | 800 |
| ORCHID | 636 | 37 x 3.33 | 322.2 | 23.31 | 888.4 | 50.73 | 0.08947 | 835 |
| HEUCHERA | 650 | 37 x 3.37 | 330 | 23.59 | 908.1 | 51.84 | 0.08747 | 855 |
| VERBANA | 700 | 37 x 3.49 | 354 | 24.43 | 977.9 | 55.63 | 0.08123 | 880 |
| FLAG | 700 | 61 x 2.72 | 354.5 | 24.48 | 977.9 | 57.42 | 0.08123 | 900 |
| VIOLET | 715 | 37 x 3.53 | 362.1 | 24.71 | 999.6 | 56.96 | 0.07953 | 900 |
| NASTURTIUM | 715.5 | 61 x 2.75 | 362.35 | 24.73 | 999.6 | 58.3 | 0.07953 | 900 |
| PETUNNIA | 750 | 37 x 3.62 | 380.8 | 25.34 | 1047.7 | 58.3 | 0.07587 | 922 |
| CATTAIL | 750 | 61 x 2.82 | 381 | 25.38 | 1047.7 | 60.08 | 0.07585 | 922 |
| ARBUTIUS | 795 | 37 x 3.72 | 402.1 | 26.04 | 1110.6 | 61.86 | 0.07156 | 960 |
| ULAC | 795 | 61 x 2.9 | 402.9 | 26.1 | 1110.6 | 63.65 | 0.07156 | 960 |
| FUCHSIA | 800 | 37 x 3.75 | 408.7 | 26.25 | 1115.2 | 62.3 | 0.07116 | 960 |
| HELIOTROPE | 800 | 61 x 2.92 | 408.7 | 26.28 | 1115.2 | 64.08 | 0.07116 | 960 |
| ANEMONE | 874.5 | 37 x 3.91 | 444.3 | 27.37 | 1221.8 | 66.75 | 0.06506 | 1020 |
| CROCUS | 874.5 | 61 x 3.04 | 442.8 | 27.36 | 1221.8 | 70.31 | 0.06506 | 1020 |
| COCKCOMB | 900 | 37 x 3.96 | 455.7 | 27.72 | 1257.4 | 68.53 | 0.06332 | 1040 |
| SNAPDRAGON | 900 | 61 x 3.09 | 457.4 | 27.81 | 1257.4 | 70.76 | 0.06332 | 1040 |
| MAGNOLIA | 954 | 37 x 4.08 | 483.7 | 28.56 | 1332.8 | 75.215 | 0.05965 | 1080 |
| GOLDENROD | 954 | 61 x 3.18 | 484.5 | 28.62 | 1332.8 | 75.215 | 0.05965 | 1080 |
| HAWKWEED | 1000 | 37 x 4.17 | 505.3 | 29.19 | 1397 | 76.54 | 0.05689 | 1110 |
| CAMELLIA | 1000 | 61 x 3.25 | 506 | 29.25 | 1397 | 78.77 | 0.05689 | 1110 |
| BLUEBELL | 1033.5 | 37 x 4.24 | 522.4 | 29.68 | 1443.8 | 78.77 | 0.05505 | 1135 |
| LARKSPUR | 1035.5 | 61 x 3.31 | 524.9 | 29.79 | 1443.8 | 81.45 | 0.05505 | 1135 |
