AAAC - All Aluminium Alloy Conductor
Voltage:High Voltage

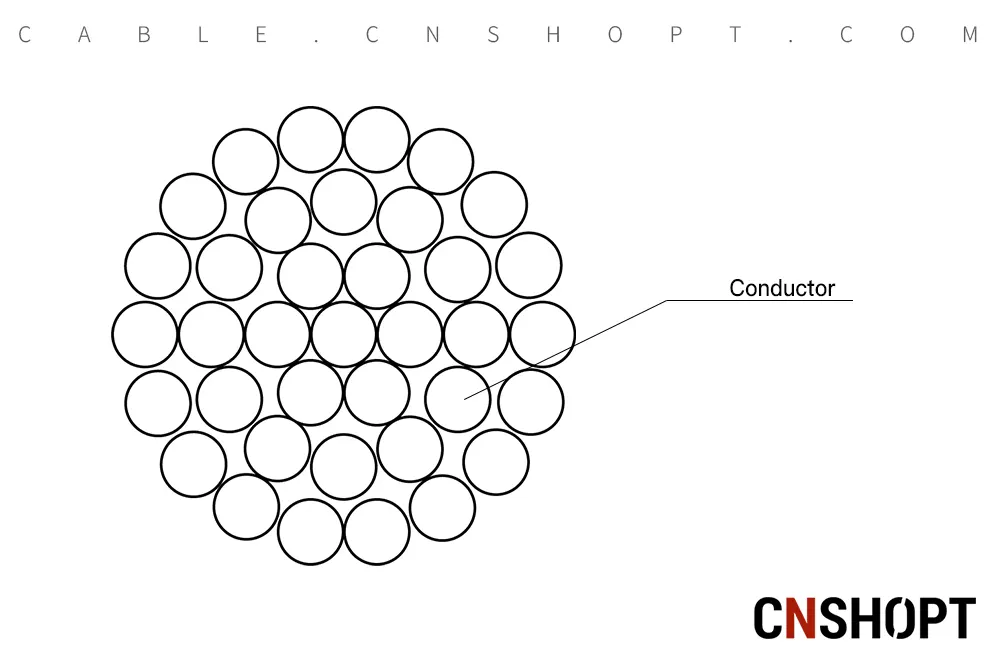

Structure:ConductorAluminium Alloy
InsulationNone
ScreenNone
SheathNone
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.

STANDARDS

ASTM B399, ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018

CONSTRUCTION

ConductorAluminium alloy conductor Type AL2 to AL7 as per EN 50183


CORESIZE
KCM		STRANDINGDIAMETER
inches		NOMINAL CROSS SECTIONAL
AREA
sq ins		RATED STRENGTH
lbs		RESISTANCE
ohms/1000ft		CURRENT RATING
Amps		SIZEACSR WITH EQUIV.DIAM. STRANDING
Alt/Stl		WEIGHT
lbs/1000ft
Individual wiresTotalDC
20ºC		AC
75ºC
AKRON30.5870.06610.1980.02411100.6590.7851076628.7
ALTON48.6970.08340.250.038217600.4140.4931434645.7
AMES77.4770.10520.3160.060828000.260.311912672.7
AZUSA123.370.13270.3980.096844600.1630.1952561/06115.7
ANAHEIM155.470.1490.4470.122153900.130.1542962/06145.9
AMHERST195.770.16720.5020.153767900.1030.12303423/06183.7
ALLIANCE246.970.18780.5630.193985600.08160.09733954/06231.8
BUTTE312.8190.12830.6420.2456110000.06440.0769460266.826293.6
CANTON394.5190.14410.7210.3098133000.05110.061532336.426370.3
CAIRO465.4190.15650.7830.3655156000.04330.0518590397.526436.9
DARIEN559.5190.17160.8580.4394188000.0360.04316634772617525.2
ELGIN652.4190.18530.9270.5124219000.03090.0371729556.52617612.4
FLINT740.8370.14150.9910.5818244000.02720.032779063626695.5
GREELY927.2370.15831.1080.7282305000.02170.026390879526870.4
