NYCY PVC PVC 0.6/1kV Power Cable
Voltage:0.6/1kV

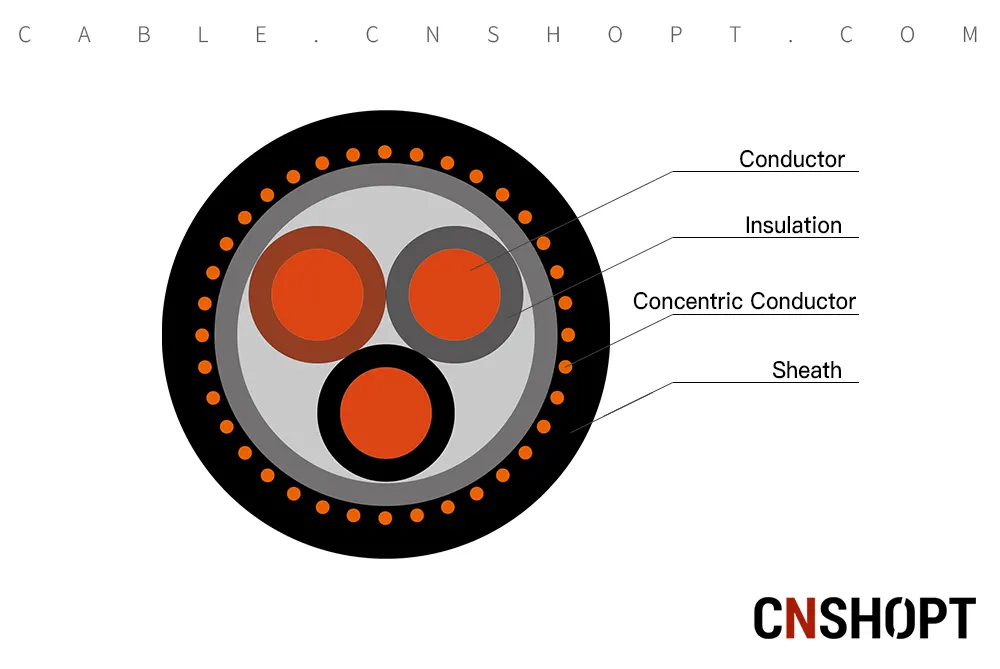

StructureConductorRE: Class 1 solid bare copper
InsulationPVC (Polyvinyl Chloride)
Concentric ConductorCopper wires and copper tape
SheathPVC (Polyvinyl Chloride)
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

For use indoors, in cable ducts, outdoors, in water, in concrete and in ground for power plants, industrial plants, as well as in local power networks, if increased electrical protection is required.

STANDARDS

VDE 0276-603, VDE 0276-627 ( ≥ 5 cores)

Flame Retardant: VDE 0482-332-1-2/IEC 60332-1-2

UV Resistant

HD 308

CHARACTERISTICS

Voltage Rating Uo/U0.6/1kV
Test Voltage4kV
Temperature RatingMaximum conductor operating temperature: 70°C
Fixed: 70°C
Moved: -5°C to +70°C
Minimum Bending Radius15 x overall diameter

CONSTRUCTION

ConductorRE: Class 1 solid bare copper
InsulationPVC (Polyvinyl Chloride)
Concentric ConductorCopper wires and copper tape
SheathPVC (Polyvinyl Chloride)
NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		CONDUCTOR TYPENOMINAL INSULATION WALL THICKNESS
mm		NOMINAL SHEATH WALL THICKNESS
mm		NOMINAL OUTER DIAMETER
mm		NOMINAL WEIGHT
kg/km
16/6RE11.810.2201
21.5/1.5RE0.81.813200
22.5/2.5RE0.81.813.6260
24/4RE11.815.4350
26/6RE11.816.9430
210/10RE11.818.5520
216/16RE11.820.5720
31.5/1.5RE0.81.813.2220
32.5/2.5RE0.81.814.2280
32.5/10RE0.81.814.4359
34/4RE11.816.3390
36/6RE11.817.3500
310/10RE11.820680
316/16RE11.8231010
41.5/1.5RE0.81.814.2250
42.5/2.5RE0.81.815.3340
44/4RE11.817.3460
46/6RE11.818.4580
410/10RE11.821765
416/16RE11.8231060
51.5/1.5RE0.81.815330
52.5/2.5RE0.81.816400
54/4RE11.819550
56/6RE11.821700
71.5/2.5RE0.81.815.3350
72.5/2.5RE0.81.817.4450
74/4RE11.820600
710/10RE11.8251320
76/6RE11.822.5790
84/4RE11.820770
101.5/2.5RE0.81.818.4410
102.5/4RE11.820.4600
104/6RE0.81.823.5900
121.5/2.5RE0.81.819.4470
122.5/4RE0.81.820.5660
124/6RE11.824.51060
141.5/2.5RE0.81.820.4520
142.5/6RE0.81.821.5750
161.5/4RE0.81.820620
162.5/6RE0.81.822.5800
191.5/4RE0.81.822.5660
192.5/6RE0.81.823.5940
194/10RE11.827.11376
211.5/6RE0.81.823790
241.5/6RE0.81.85.5850
242.5/10RE0.81.87.61150
244/10RE11.82.31813
301.5/6RE0.8-26.51020
302.5/10RE0.81.829.51600
401.5/10RE0.81.8301280
402.5/10RE0.81.8331660
521.5/10RE0.81.8321600
522.5/10RE0.81.8352000
611.5/10RE0.81.8332000
612.5/10RE0.81.8362280
