| NAYY-J / NAYY-O Aluminium Conductor PVC PVC 0.6/1kV Cable | ||
|---|---|---|
| Voltage: | 0.6/1kV | |

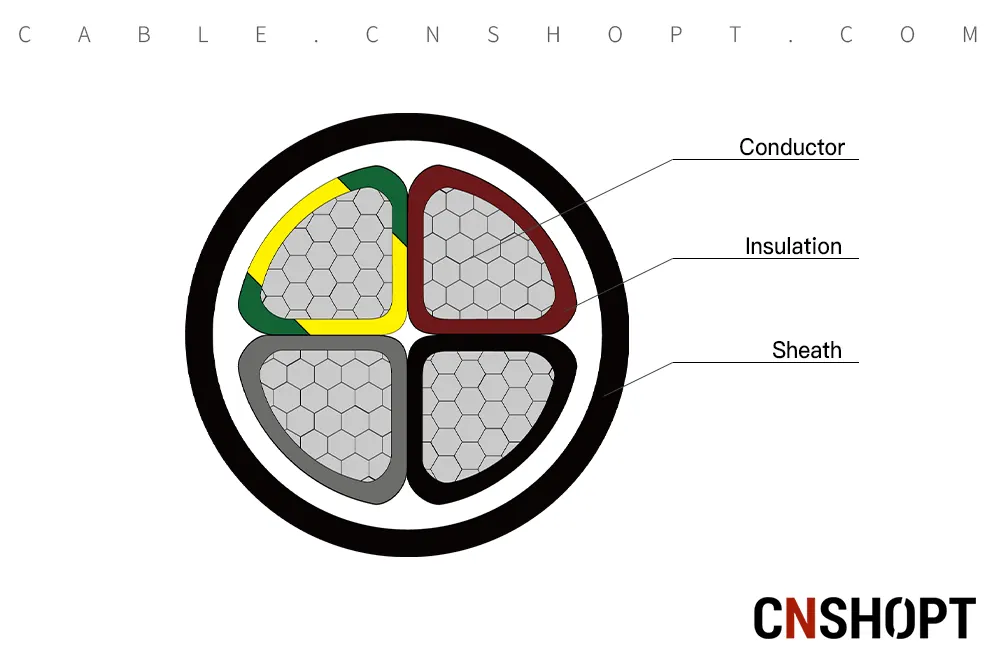

| Structure | Conductor | solid / stranded aluminum conductor |
| Insulation | PVC (Polyvinyl Chloride) | |
| Screen | None | |
| Sheath | PVC (Polyvinyl Chloride) | |
For fixed installation in buildings, in free air, in ground and in water.
IEC 60502-1, VDE 0276-603, HD 603, IEC 60228
Flame retardant according to IEC/EN 60332-1-2
| Voltage Rating Uo/U | 0.6/1kV |
| Operating Temperature | Operating: -5°C to +70°C |
| Conductor | RE: Class 1 solid aluminium-circular or circular compacted |
| RM: Class 2 stranded | |
| SM: Class 2 sector - shaped | |
| SE: Class 1 solid sector - shaped or stranded (available upon request) | |
| Insulation | PVC (Polyvinyl Chloride) |
| Sheath | PVC (Polyvinyl Chloride) |
| NO. OF CORES | CONDUCTOR TYPE | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | FIXED INSTALLATION BENDING RADIUS mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | RE | 16 | 1 | 158 | 1.8 | 10.5 | 145 |
| 1 | RE | 25 | 1.2 | 180 | 1.8 | 12 | 195 |
| 1 | RE | 35 | 1.2 | 203 | 1.8 | 13.5 | 255 |
| 1 | RM | 50 | 1.4 | 231 | 1.8 | 15.4 | 298 |
| 1 | RM | 70 | 1.4 | 255 | 1.8 | 17 | 383 |
| 1 | RM | 95 | 1.6 | 285 | 1.8 | 19 | 490 |
| 1 | RM | 120 | 1.6 | 300 | 1.8 | 20 | 575 |
| 1 | RM | 150 | 1.8 | 330 | 1.8 | 22 | 695 |
| 1 | RM | 185 | 2 | 375 | 1.8 | 25 | 845 |
| 1 | RM | 240 | 2.2 | 420 | 1.8 | 28 | 1100 |
| 1 | RM | 300 | 2.4 | 450 | 1.9 | 30 | 1379 |
| 1 | RM | 400 | 2.6 | 510 | 2 | 34 | 1615 |
| 1 | RM | 500 | 2.8 | 555 | 2.1 | 37 | 2015 |
| 1 | RM | 630 | 2.8 | 645 | 2.2 | 43 | 2472 |
| 3 | SM | 300 | 2.4 | 708 | 3 | 59 | 4500 |
| 4 | RE | 6 | 1 | 204 | 1.8 | 17 | 377 |
| 4 | RE | 10 | 1 | 285 | 1.8 | 19 | 470 |
| 4 | RE | 16 | 1.2 | 288 | 1.8 | 24 | 750 |
| 4 | RE | 25 | 1.2 | 300 | 1.8 | 25 | 950 |
| 4 | RE | 35 | 1.2 | 354 | 1.8 | 28.1 | 1120 |
| 4 | SM | 50 | 1.4 | 354 | 1.9 | 29.5 | 1151 |
| 4 | SM | 70 | 1.4 | 420 | 2.1 | 33.4 | 1549 |
| 4 | SM | 95 | 1.6 | 468 | 2.2 | 39 | 2030 |
| 4 | SM | 120 | 1.6 | 516 | 2.4 | 43 | 2400 |
| 4 | SM | 150 | 1.8 | 552 | 2.5 | 46 | 3030 |
| 4 | SM | 185 | 2 | 612 | 2.7 | 51 | 3650 |
| 4 | SM | 240 | 2.2 | 696 | 2.9 | 58 | 4800 |
| 4 | SM | 300 | 2.4 | 786 | 3 | 65.5 | 5685 |
| 5 | RE | 10 | 1 | 232 | 1.8 | 19.3 | 585 |
| 5 | RE | 16 | 1 | 262 | 1.8 | 21.8 | 938 |
| 5 | RE | 25 | 1.2 | 325 | 1.8 | 27.1 | 1188 |
| 5 | RE | 35 | 1.2 | 362 | 1.8 | 30.2 | 1375 |
| 5 | RM | 50 | 1.4 | 432 | 1.8 | 36.2 | 1720 |
| 5 | RM | 70 | 1.4 | 492 | 2.1 | 44 | 2240 |
| 5 | RM | 95 | 1.6 | 564 | 2.1 | 47 | 3060 |
| 5 | RM | 120 | 1.6 | 612 | 2.4 | 53 | 3580 |
| 5 | RM | 150 | 1.8 | 672 | 2.5 | 56 | 4400 |
| 5 | RM | 185 | 2 | 804 | 2.7 | 59 | 5481 |
| 5 | RM | 240 | 2.2 | 852 | 2.9 | 71 | 7000 |
| NO. OF CORES | CONDUCTOR TYPE | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | FIXED INSTALLATION BENDING RADIUS mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|---|
| 1 | RE | 16 | 1 | 157 | 1.8 | 10.5 | 145 |
| 1 | RE | 25 | 1.2 | 180 | 1.8 | 12 | 195 |
| 1 | RE | 35 | 1.2 | 203 | 1.8 | 13.5 | 255 |
| 1 | RM | 50 | 1.4 | 225 | 1.8 | 15 | 298 |
| 1 | RM | 70 | 1.4 | 204 | 1.8 | 17 | 383 |
| 1 | RM | 95 | 1.6 | 285 | 1.8 | 19 | 490 |
| 1 | RM | 120 | 1.6 | 300 | 1.8 | 20 | 575 |
| 1 | RM | 150 | 1.8 | 330 | 1.8 | 22 | 695 |
| 1 | RM | 185 | 2 | 375 | 1.8 | 25 | 845 |
| 1 | RM | 240 | 2.2 | 420 | 1.8 | 28 | 1100 |
| 1 | RM | 300 | 2.4 | 450 | 1.9 | 30 | 1379 |
| 1 | RM | 400 | 2.6 | 510 | 2 | 34 | 1615 |
| 1 | RM | 500 | 2.8 | 555 | 2.1 | 37 | 2015 |
| 1 | RM | 630 | 2.8 | 645 | 2.2 | 43 | 2472 |
| 1 | RM | 800 | 2.9 | 675 | 2.4 | 45 | 3120 |
| 3 | SE | 300 | 2.4 | 708 | 3 | 59 | 4500 |
| 4 | RE | 16 | 1 | 288 | 1.8 | 24 | 750 |
| 4 | RE | 25 | 1.2 | 300 | 1.8 | 25 | 950 |
| 4 | SE | 35 | 1.2 | 338 | 1.8 | 28.1 | 1120 |
| 4 | SE | 50 | 1.4 | 360 | 1.9 | 30 | 1151 |
| 4 | SE | 70 | 1.4 | 420 | 2.1 | 35 | 1549 |
| 4 | SE | 95 | 1.6 | 468 | 2.2 | 39 | 2030 |
| 4 | SE | 120 | 1.6 | 516 | 2.4 | 43 | 2400 |
| 4 | SE | 150 | 1.8 | 552 | 2.5 | 46 | 3030 |
| 4 | SE | 185 | 2 | 612 | 2.7 | 51 | 3650 |
| 4 | SE | 240 | 2.2 | 672 | 2.9 | 56 | 4800 |
