N2XY - XLPE PVC 0.6/1kV Cable
Voltage:0.6/1kV
StructureConductorCopper conductor
InsulationXLPE (Cross-Linked Polyethylene)
ScreenNone
SheathPVC (Polyvinyl Chloride)
Inquiry Now Send E-mail
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Contact Us

APPLICATION

These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

STANDARDS

IEC 60502-1, VDE 0276-603, IEC/EN 60228

Flame retardant according to IEC/EN 60332-1-2

CHARACTERISTICS

Voltage Rating Uo/U0.6/1kV
Temperature RatingDuring installation -5°C to +50ºC
Fixed Installation: -20°C to +90°C
Minimum Bending RadiusFixed: 12 x overall diameter

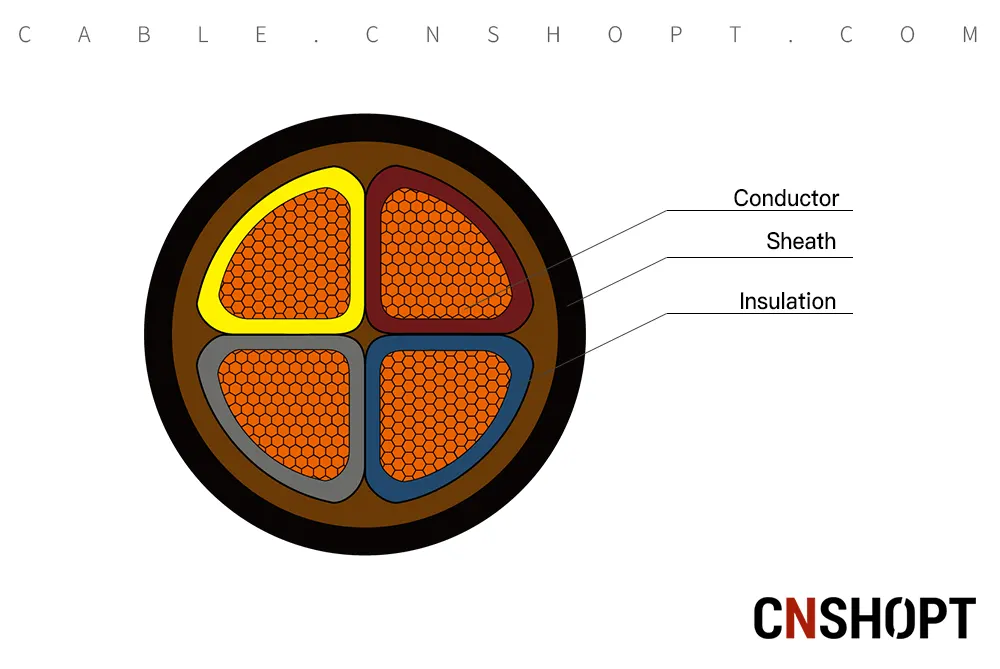

CONSTRUCTION

ConductorRE: Class 1 solid copper conductor
RM: Class 2 stranded circular or circular compacted
SM: Class 2 stranded sectoral shaped
InsulationXLPE (Cross-Linked Polyethylene)
BeddingPVC (Polyvinyl Chloride)
SheathPVC (Polyvinyl Chloride)


NO. OF CORESNOMINAL CROSS SECTIONAL AREA
mm2		CONDUCTOR TYPENOMINAL THICKNESS
OF INSULATION
mm		NOMINAL THICKNESS
OF SHEATH
mm		NOMINAL OVERALL DIAMETER
mm		NOMINAL WEIGHT
kg/km
116RM0.71.89.8216
125RM0.91.811.5318
135RM0.91.812.6415
150RM11.814.1543
170RM1.11.815.6746
195RM1.11.817.61000
1120RM1.21.819.21239
1150RM1.41.821.21515
1185RM1.61.823.11872
1240RM1.71.825.82403
1300RM1.81.827.82974
1400RM21.931.13834
1500RM2.2234.94892
1630RM2.82.846.66544
21.5RE0.71.810.1145
22.5RE0.71.810.9179
24RE0.71.811.8226
26RE0.71.812.8284
26RM0.71.813.1295
210RM0.71.815416
216RM0.71.817581
225RM0.91.820.4859
235RM0.91.822.51109
31.5RE0.71.810.5162
32.5RE0.71.811.4205
34RE0.71.812.4265
36RE0.71.813.4338
310RM0.71.815.8505
316RM0.71.818719
325RM0.91.821.61072
335RM0.91.823.91403
350SM11.923.81581
316/10SM0.71.819.8875.5
31 9/16SM0.9/0.71.822.41223
32 3/16SM0.9/0.71.824.31557
32SM1/0.91.926.91863
32SM1.1/0.92302594
31 9/10SM1.1/12.233.83505
31 5/7SM1.2/1.12.3374440
32 1/7SM1.4/1.12.441.65333
31 18/19SM1.6/1.12.645.86701
32SM1.7/1.22.851.68674
32SM1.8/1.4367.210624
41.5RE0.71.811.3188
42.5RE0.71.812.2240
44RE0.71.813.3314
46RE0.71.814.5408
410RE0.71.817.1615
416RE0.71.819.6885
425RE0.91.823.71330
435RE0.91.826.21758
450SM1227.12082
470SM1.12.131.42937
495SM1.12.2353955
4120SM1.22.439.34979
4150SM1.42.643.66129
4185SM1.62.7487591
4240SM1.72.953.99875
4300SM1.82.668.915124
51.5RE0.71.812.1218
52.5RE0.71.813.1281
54RE0.71.814.3372
56RE0.71.815.6486
510RM0.71.818.6740
516RM0.71.821.31071
525RM0.91.825.91619
535RM0.91.828.82138
550RM12.129.42578
570RM1.12.233.73616
595RM1.12.438.64933
5120RM1.22.542.66153
5150RM1.42.747.77587
5185RM1.62.952.89454
5240RM1.73.158.712242
71.5RE0.71.812.9260
72.5RE0.71.814342
74RE0.71.815.4461
101.5RE0.71.815.6357
102.5RE0.71.817.2475
104RE0.71.819646
121.5RE0.71.816.1394
122.5RE0.71.817.6528
141.5RE0.71.816.8436
142.5RE0.71.818.5592
164RM0.71.823971
191.5RE0.71.818.4543
192.5RE0.71.820.3746
241.5RE0.71.821.2675
242.5RE0.71.823.4931
301.5RE0.71.822.3788
302.5RM0.71.826.31164
401.5RE0.71.824.6995
402.5RE0.71.927.51416
